London Underground Vintage And Heritage Trains

A Page About The Locomotive Hauled Vintage and Heritage Rolling Stock Which
Sometimes Carries Passengers Over Parts Of The London Underground Network


Jubilee Carriage No.353

In the early days of the railways passengers travelled in four wheel carriages which had a core design based upon horse-drawn stagecoaches. As time progressed and newer passenger carriages were introduced the older fleets were usually either sold off or scrapped. Sometimes those which were sold off found new lives as outbuildings on farms, garden sheds, converted to summer holiday accommodation, beach huts, and other uses. In this guise they often survived for many decades, albeit with their wooden bodies slowly slipping into states of ever-increasing decrepitude.

One (of the many) railway companies which built such carriages was London's Metropolitan Railway (the Met). In 1887 the Met introduced the first of a fleet of four wheeled passenger carriages of a type that it called Jubilee carriages. This name was in honour of Queen Victoria's Golden Jubilee which was being celebrated in the same year. Rather than replace any existing carriages the new fleet was needed for network expansion along a new route which extended many miles through rural England from London to the country towns of Chesham and Aylesbury.

The Jubilee carriages comprised wooden bodies which were mounted on fixed iron frames. Whilst first class passengers were offered luxuriously furnished accommodation and second class passengers enjoyed modest comfort, the accommodation for third class was austere, with hard, cramped wooden benches. At least though the latter still had roofs - unlike some third class carriages introduced by the Great Western Railway in the very early days of the railways.

Amazingly, the body of Jubilee carriage No. 353 which dates from 1892 and was built for passengers travelling first class managed to survive to the present-era. Whether this was by sheer fluke or divine decree will never be known, Very briefly, No.353's history is that in 1906 it was sold to another railway and after further service the wooden body ended up as a shed on a farm. Restoration works began in 2011.

Unfortunately the underframe, wheels etc., did not survive, so the body now sits on a suitable four wheeled underframe which came from former British Rail (Southern Region) PMV No. 1746 and was kindly donated by the Quainton Railway Society. The PMV (Parcels and Miscellaneous Van) was a design of rolling stock that was first built by the South Eastern and Chatham Railway (SE&CR) in 1919. Later examples were also built by both the Southern Railway and until 1951, British Railways.

Nowadays No.353 is in semi-retirement as an exhibit at the London Transport Museum Acton Depot, however it usually sees active duty carrying fare paying passengers on days when either the London Transport Museum Heritage Train or the Metropolitan Vintage train are also carrying passengers on portions of the London Underground subsurface network. Sometimes this is together with a Metropolitan Railway milk van which had always remained in railway ownership and has also been made available so that people of the present era can see and learn about how the railways of yesteryear served the British people.

Further reading / information sources: ..
http://basilicafields.wordpress.com/2011/10/08/metropolitan-jubilee-4-wheel-coaching-stock-part-3/
http://www.bbc.co.uk/news/uk-wales-north-west-wales-20399568
http://www.ltmuseum.co.uk/assets/downloads/friends_news_october11.pdf  (requires "acrobat portable document / pdf" compatible reader to view)
http://www.cs.vintagecarriagestrust.org/se/CarriageInfo.asp?Ref=3409

As an aside, the Met also had other fleets of four wheel carriages, however none of these are known to have survived.

The Metropolitan Railway withdrew the last of its four wheel carriages from service in 1905, when it converted its urban services from steam to electric traction.

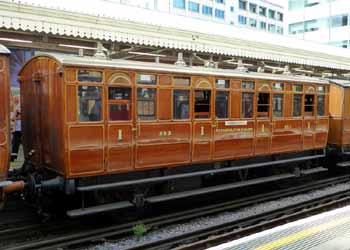

Metropolitan Jubilee carriage 353.
Metropolitan Railway Jubilee carriage No.353 at Hammersmith (Met) station when it was carrying fare paying passengers (who had bought a special ticket in advance) during a 2014 Steam On The Met event which celebrated 150 years of the Hammersmith & City Railway.

The Hammersmith & City Railway was a joint venture between the Metropolitan Railway and the Great Western Railway.
The line was dual gauge and when services first began the Great Western used its extra wide broad gauge trains. The route started at Westbourne Park station and extended to the suburb of Hammersmith, albeit at a different terminus station than is used nowadays.

The next few views show No.353 when it was one of the many exhibits at a London Transport Museum (LTM) Acton Depot open day.

partial side view
Side view. It was not possible to stand far enough away to photograph a side view of the entire carriage.

solebar view

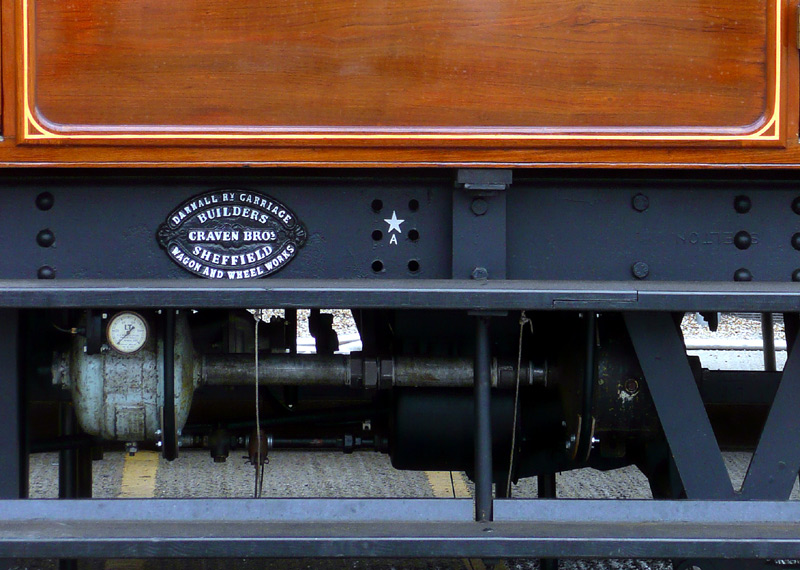

The builders plate on the solebar. As explained in the text above the underframe comes from a different item of rolling stock.

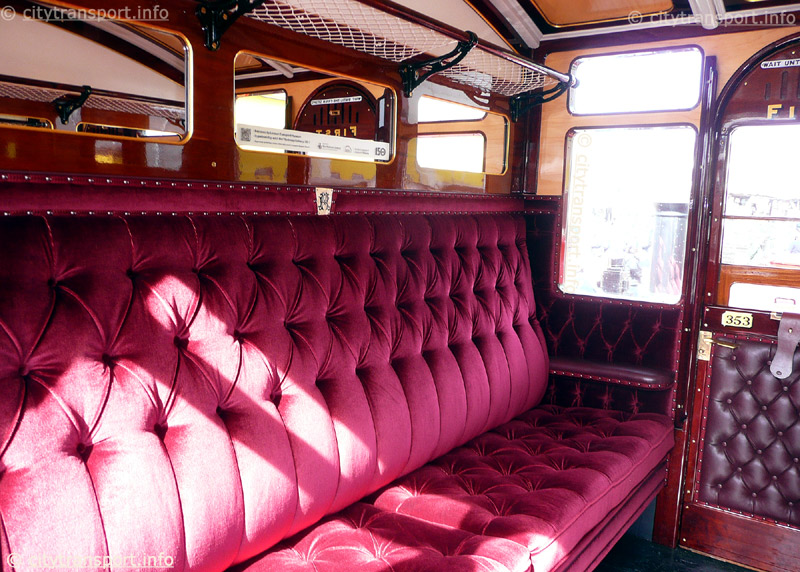

bench seating Jubilee carriage No.353.

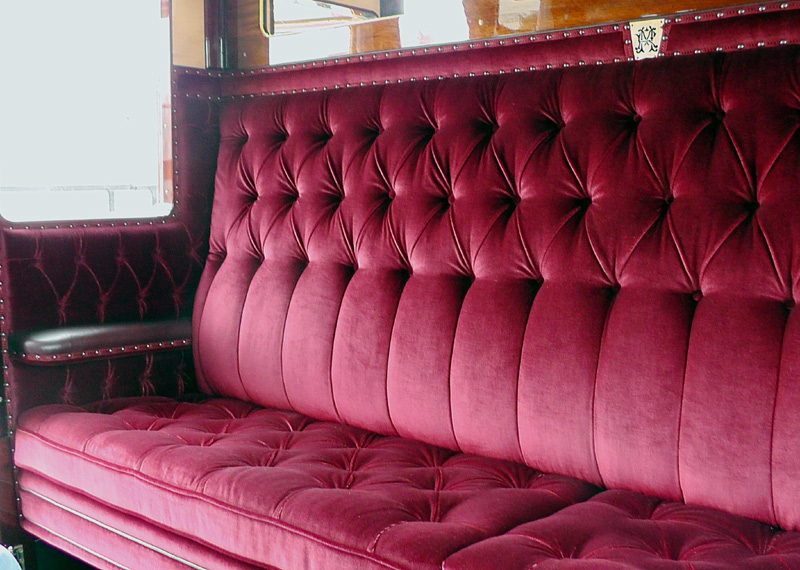

Plush deep-buttoned bench seating.

Metropolitan Railway logo
Each seating bay also includes the Metropolitan Railway MR logo.

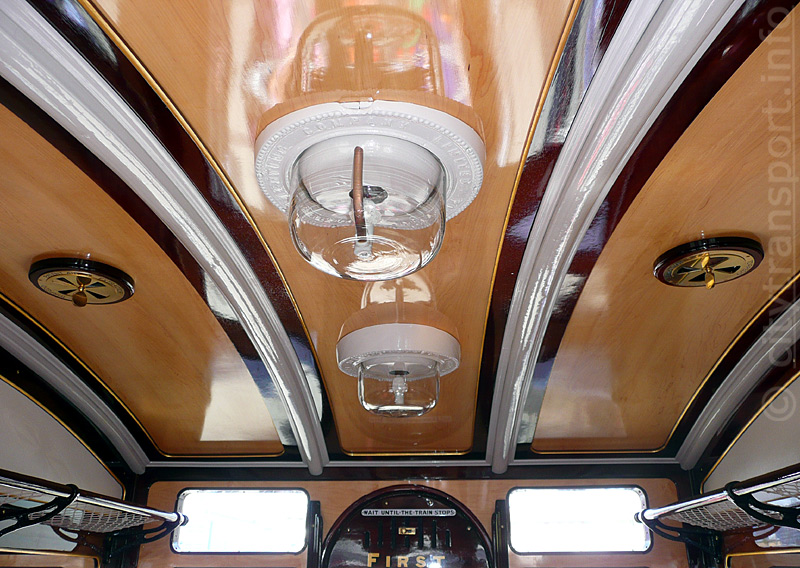

Metropolitan Jubilee carriage 353 ceiling view

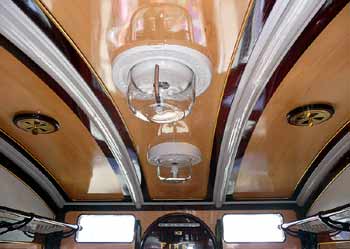

The ceiling inside one of the former smoking compartments which has two extra ventilators.
Originally these carriages used pressurised gas lighting, however when refurbished it was found that electric LED lights offered a visually similar but much safer way to mimic the appearance of gas mantles.
As this is a first class compartment it has two lights - second and third class passengers had to manage with just one light per compartment!

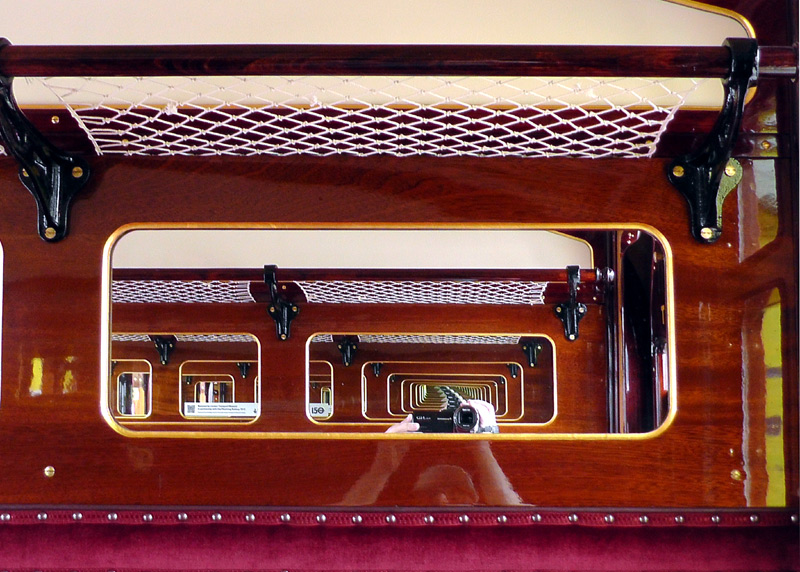

polished wood reflections - opposite mirrors never ending image
A fun image - this was taken using a camcorder because it was possible to tilt the viewing screen downwards
and compose the image to be taken. This view also shows just how reflective polished wood can be!

sign saying funded by heritage lottery fund
This carriage was beautifully restored by the Ffestiniog Railway, with the work being partially funded by the Heritage Lottery fund.

door lock builders plate Metropolitan Jubilee carriage 353

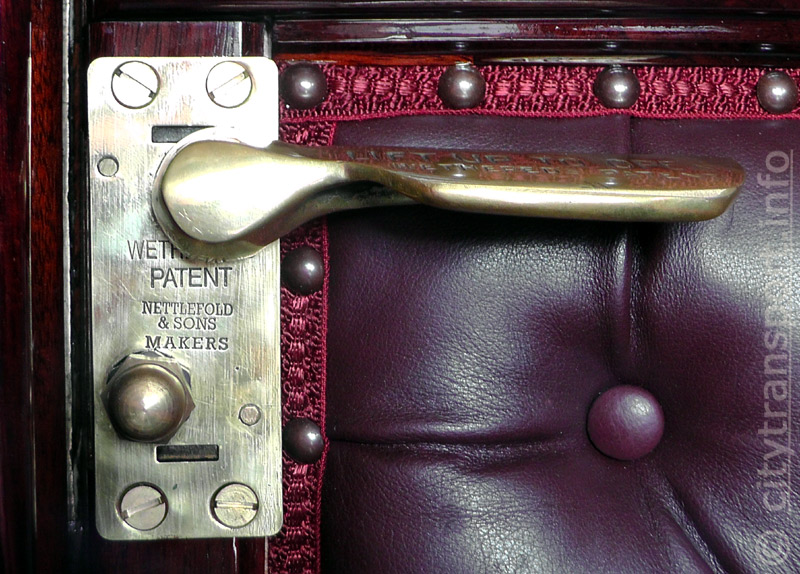

The door lock plus builder's details and a closer view of the deeply buttoned fabric and braid trimming.

instructions on how to use door lock.

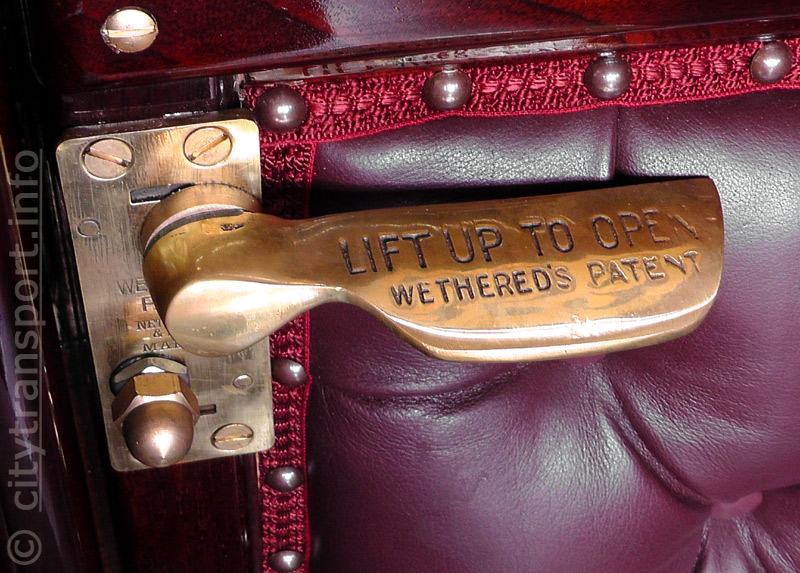

A second view of the door lock, this time showing the instruction on how to open the door.
Apart from commonsense there would be nothing to prevent the door from being opened between stations.

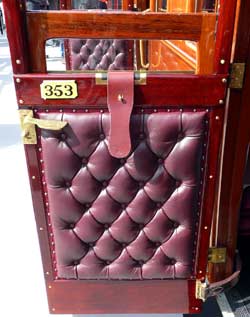

deeply buttoned upholstery

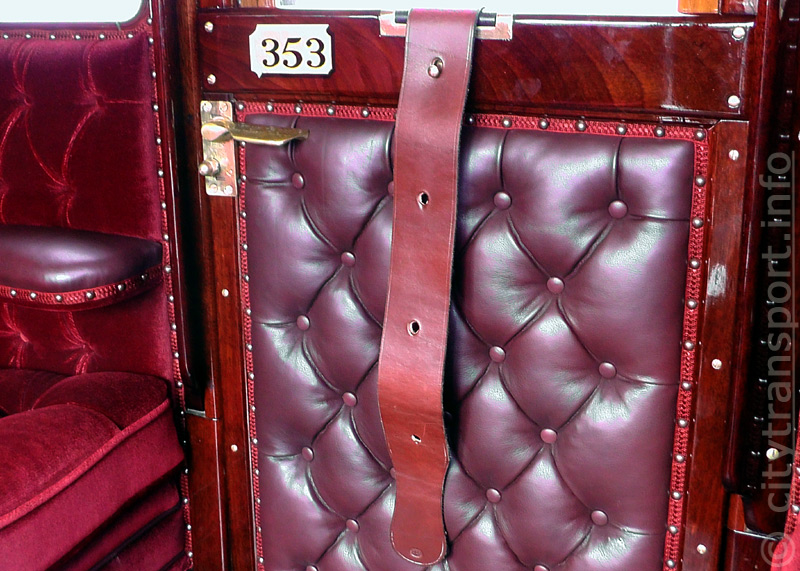

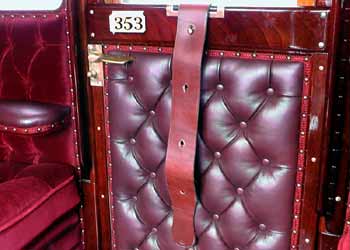

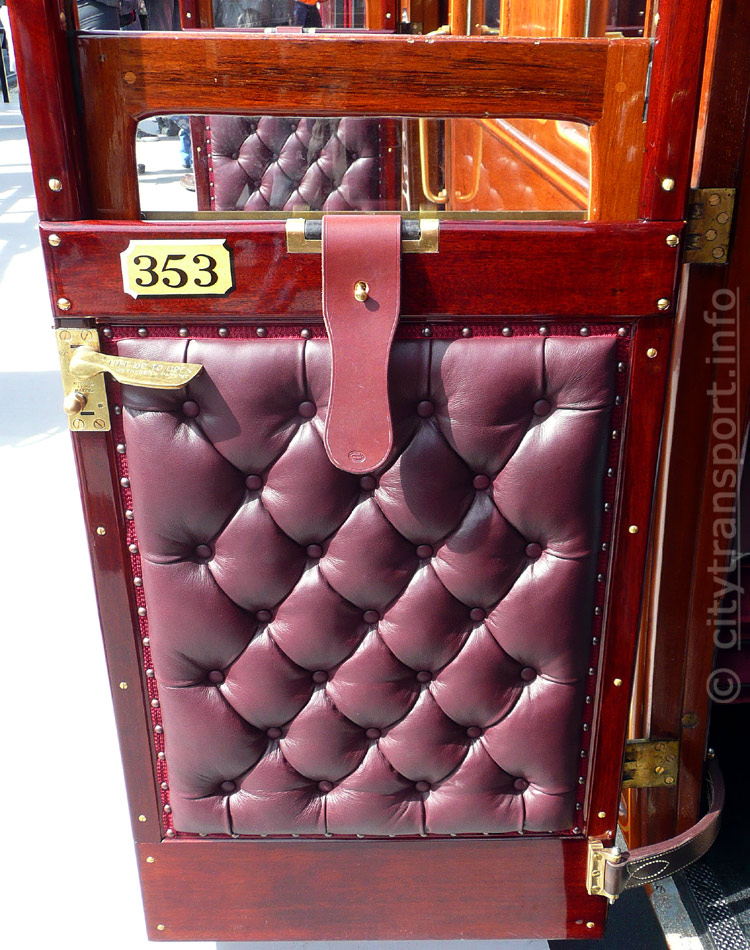

The window strap, deeply buttoned upholstery on the inside of the door, part of an armrest and much more...

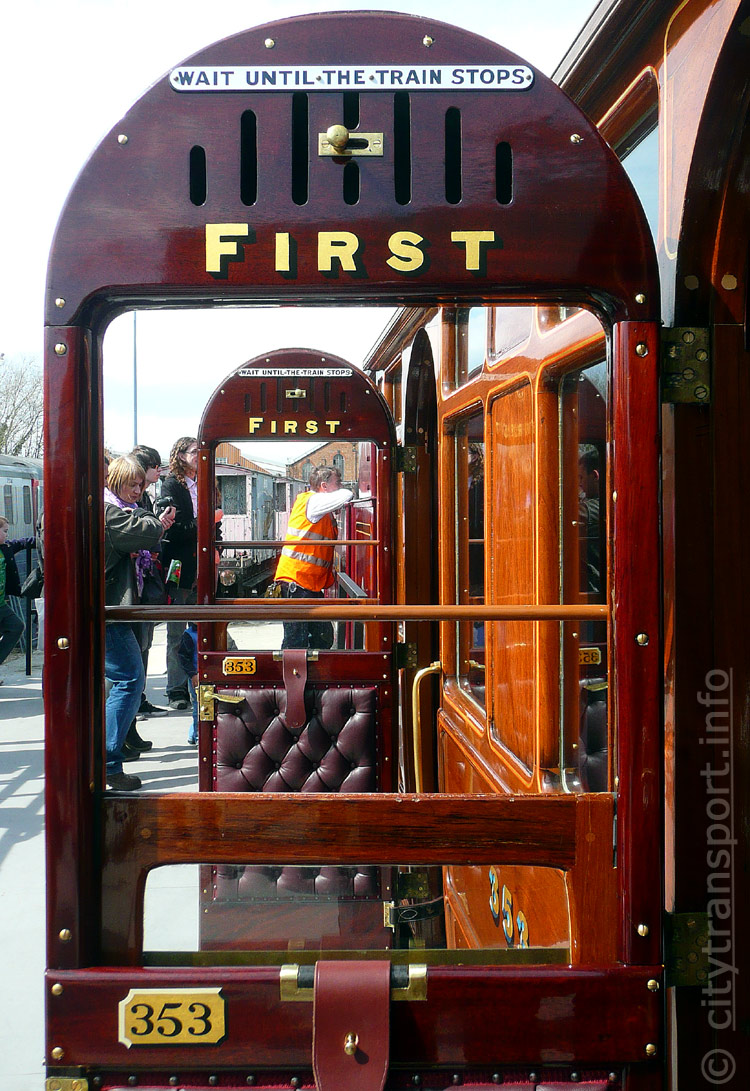

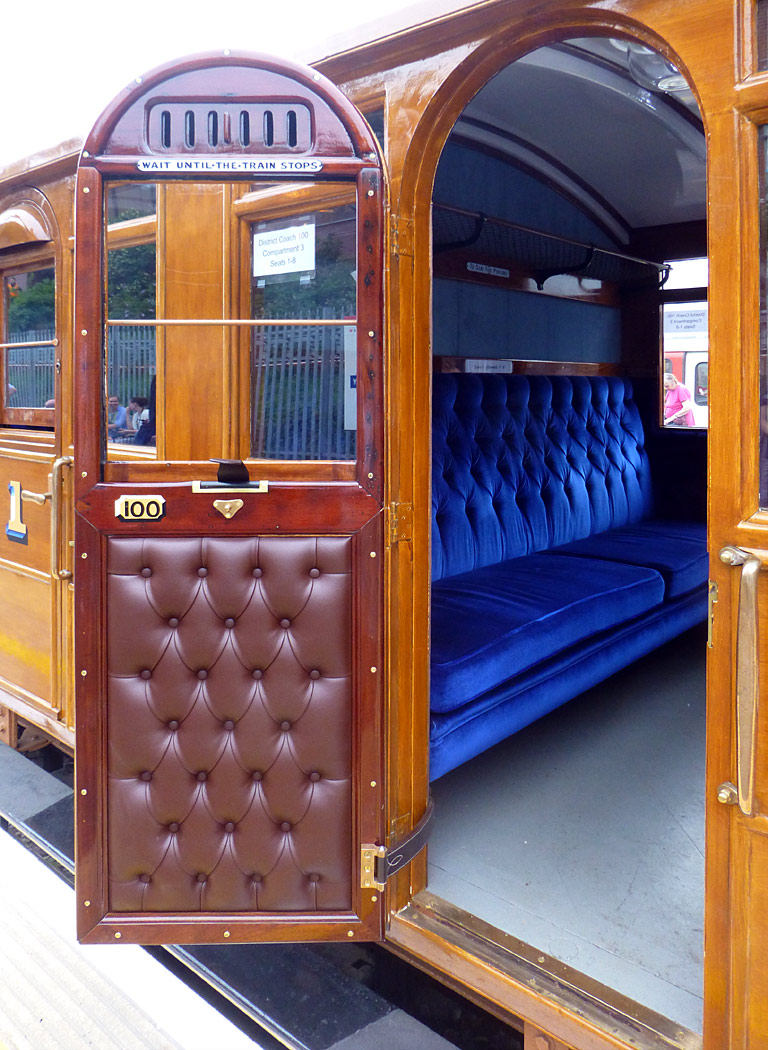

door view
The lower part of an open door.

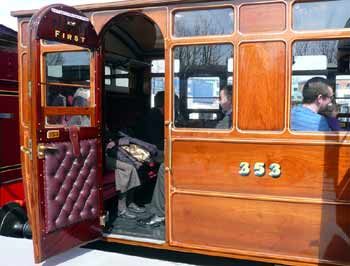

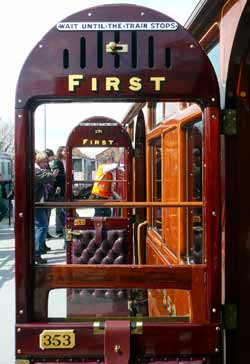

door with open window
The upper part of an open door.
The door tops were rounded to reduce the likelihood of damage if a door was left open and whilst swinging 'to & fro'
hit a tunnel wall on the subterranean section of track south of Finchley Road station.

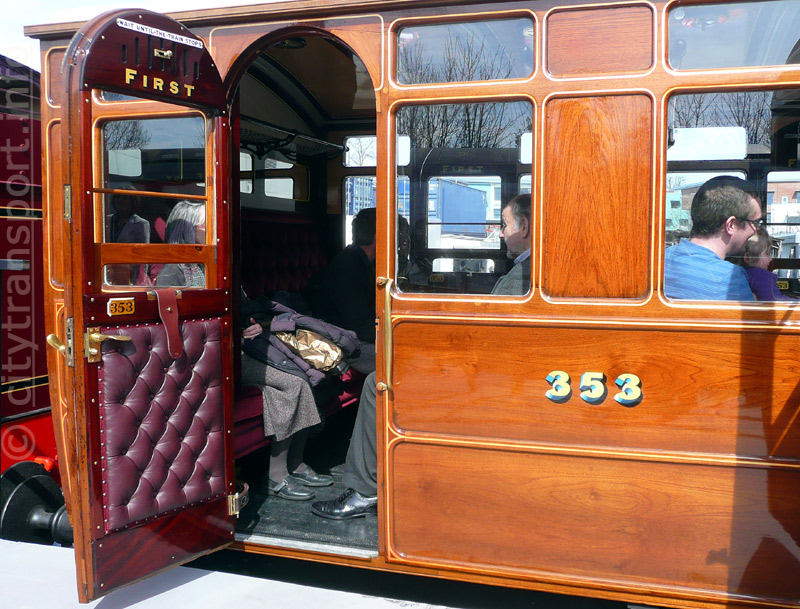

vintage railway train carriage coach with open door people sitting inside
It was a warm spring day and in addition to marvelling at the luxuriousness of the internal furnishings. some visitors thought that
it would be appropriate to use No. 353 as a shaded seating area where they could talk with friends, relatives, etc.

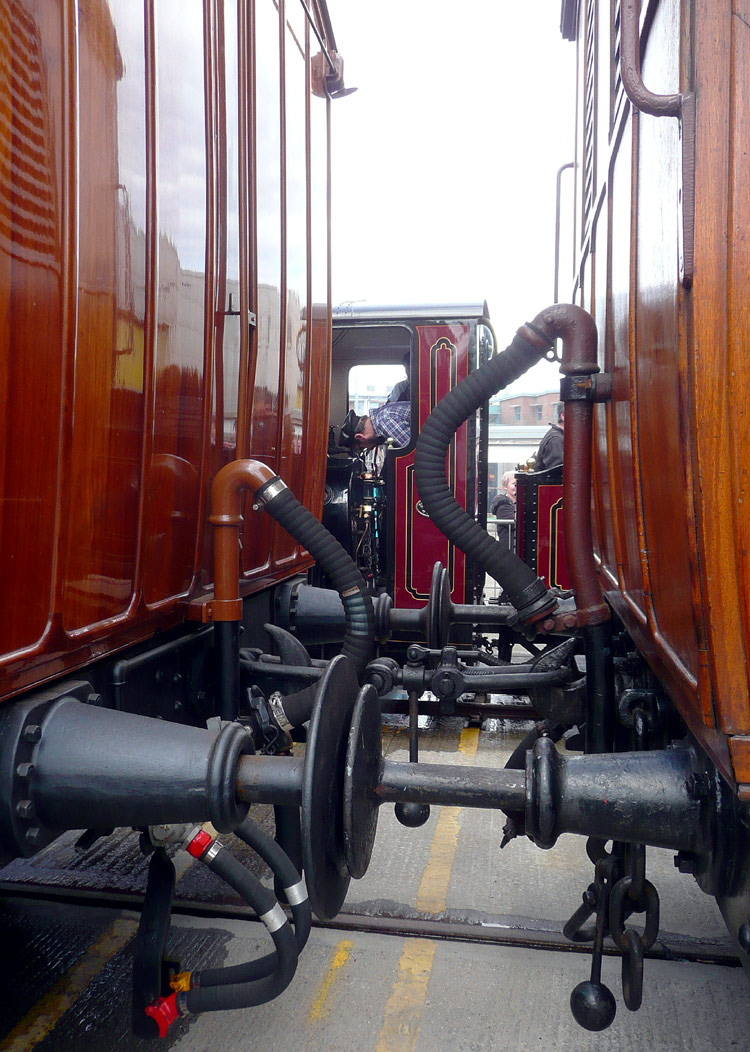

train couplings sprung buffers.
No.353 was coupled to a former Metropolitan Railway milk van which also survived to the present era.
Behind these two vehicles is part of the narrow gauge train which was offering joyrides to young children.
Including the moving train in this image was useful in masking the queue of people waiting for their turn for a joyride!

On 2nd December 2013 Jubilee carriage No.353 was included in a special non-passenger staff training train which travelled to Uxbridge prior to a planned "Steam On The Met" event. What is most remarkable is that each of the three locomotives which powered this train used a different traction system - these being steam, diesel and electricity.

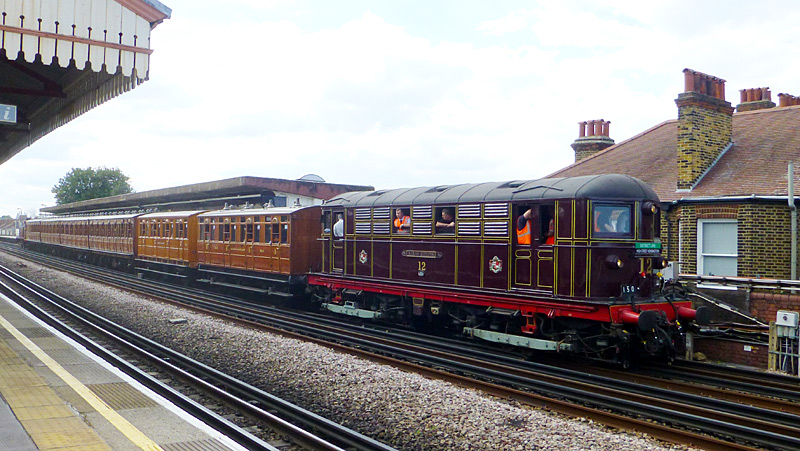

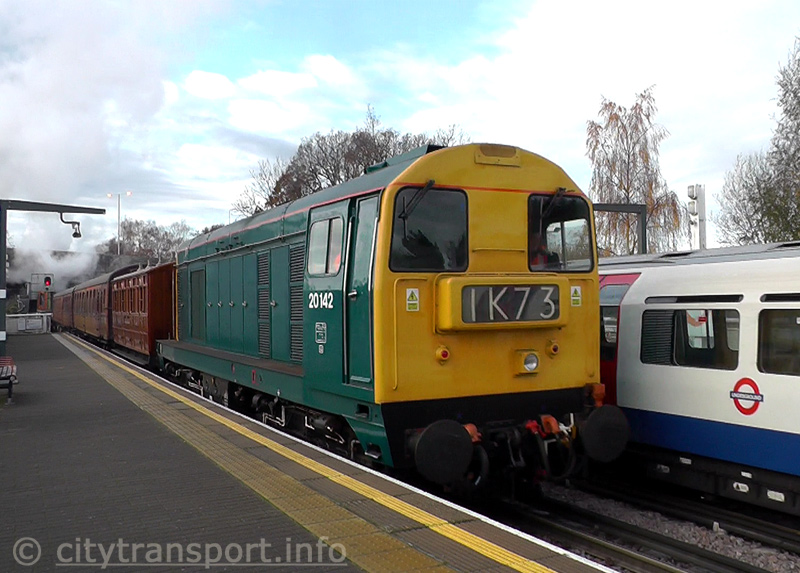

triple locomotive train

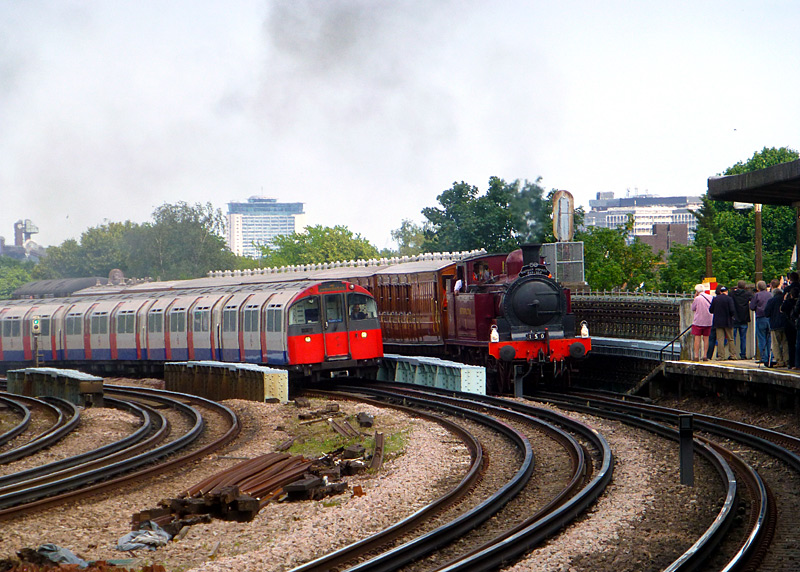

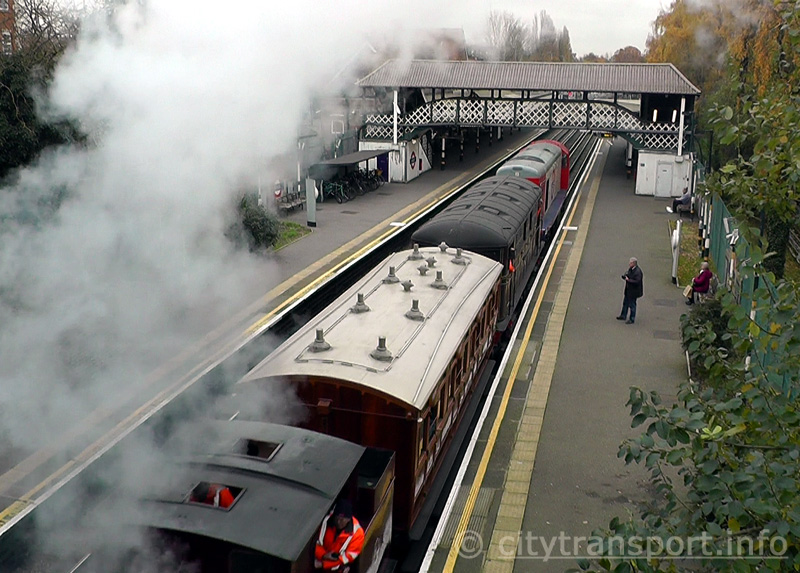

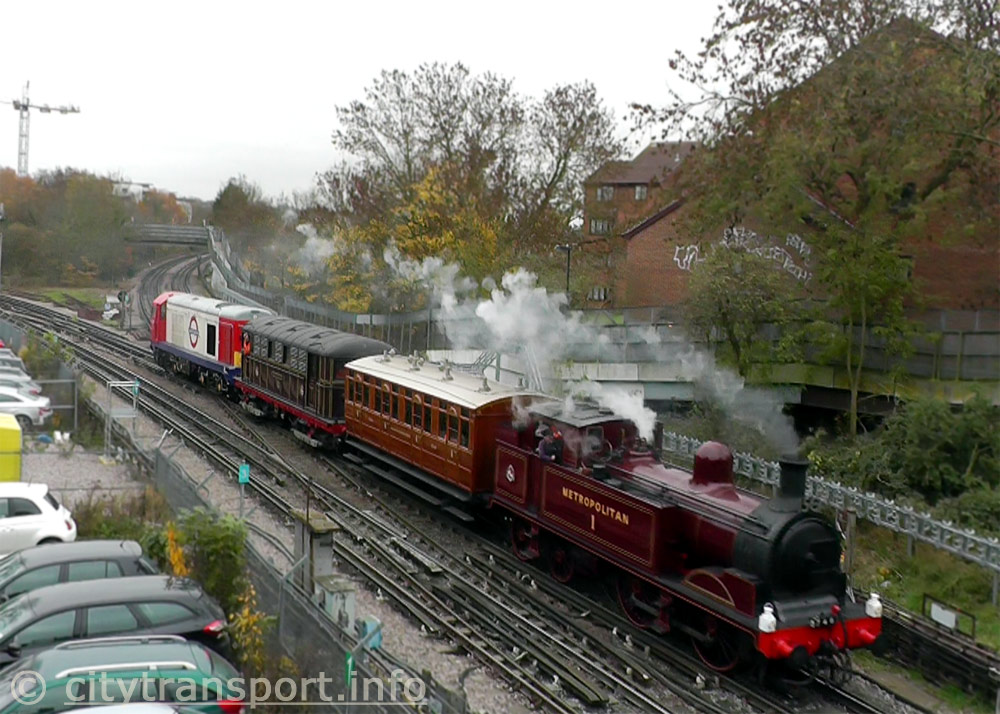

The triple-powered train is seen passing Rayners Lane junction, which is where the Metropolitan and Piccadilly lines join.

train roof view
The triple-powered train is seen after having been brought to a halt at a red signal whilst passing through Ruislip station.
The elevated viewpoint from a nearby road offers a superb rooftop view of the train - including carriage No.353 where
it is possible to see the extra ventilators for the two smoking compartments.

Another time when Jubilee carriage No.353 was run on its own (ie: as the only passenger carriage) was on 28th November 2013 when it was included in a train that was powered by battery locomotives Nos. 25 and 45 and Metropolitan Railway steam locomotive No.1.

The train was travelling from Ealing depot to Ruislip depot in advance of the final steam train special event of the 2013 celebrations of it being 150 years since the 1863 opening of the first section of the Metropolitan Railway. Although not illustrated on this page it is possible to watch a short video of the train departing from Ealing Common depot and passing through the adjacent Ealing Common station.

film projector icon
Two videos showing Jubilee carriage No.353 whilst travelling solo (ie: as the only passenger carriage) have been placed on the ‘YouTube’ film / video website and can be watched (in new windows) by clicking the links below: .
  • The triple-powered train which is powered by Metropolitan Railway steam locomotive No.1, Metropolitan Railway Electric Locomotive No.12 Sarah Siddons and British Railways diesel locomotive No. 20 227 at various locations on the Uxbridge branch
    https://www.youtube.com/watch?v=zSw8b0T7O-8
  • The battery-electric steam train which is powered by battery locomotives Nos. 25 and 45 and Metropolitan Railway steam locomotive No.1 is seen departing Ealing Depot and passing through Ealing Common station
    https://www.youtube.com/watch?v=FjBd9ShDf1k

Milk Van No.3

Built by the Birmingham Carriage & Wagon Company, Metropolitan Railway milk van No.3 dates from 1896. Its purpose was to carry fresh milk from dairy farms in Hertfordshire and Buckinghamshire to London. It was withdrawn in 1936, after which it became Breakdown Van No. BDV700. In the early 1960's it was restored back to its original condition so that it could be included in the 1963 centenary celebrations of the London Underground. After that it was displayed at museums and stored (out of sight) at other places. In 2012 it was overhauled so that it could be included in the January 2013 heritage celebrations for the 150th anniversary of the Metropolitan Railway.

The purpose of milk vans was to carry churns of fresh milk directly from dairy farms to nearby town and cities. They were usually attached to fast passenger trains and despite being a type of goods wagon they were built with additional suspension to reduce the likelihood of the milk starting to turn into butter during the journey. To help keep the milk fresh milk vans were 'ventilated', which means that they were designed to allow outside air to flow through them as they travelled. Airflow would pass through the wooden slats located on all four sides, including on the sliding doors. Although not intended to carry human passengers should anyone be travelling inside it would feel as if the windows were open wide... the word 'draughty' comes to mind!

Further reading / information sources: ..
http://www.cs.vintagecarriagestrust.org/se/CarriageInfo.asp?Ref=1072

Metropolitan Railway milk van

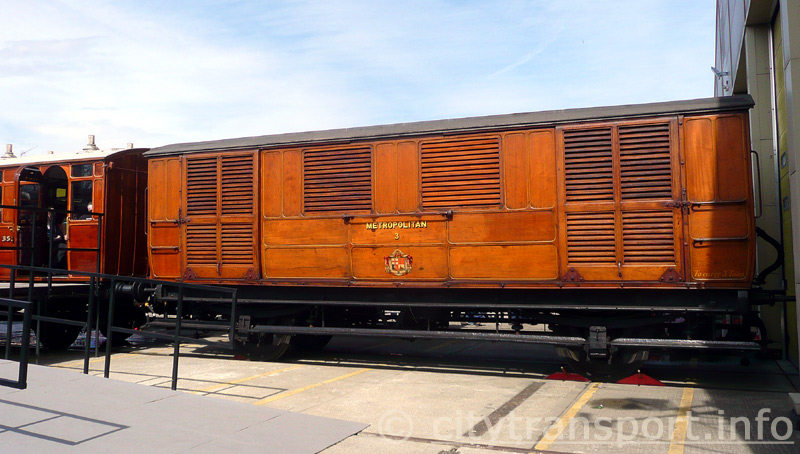

Milk van No.3 alongside Jubilee Carriage No.353 at a LTM Acton Depot open day.

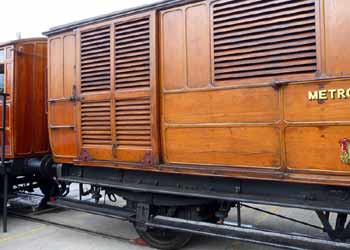

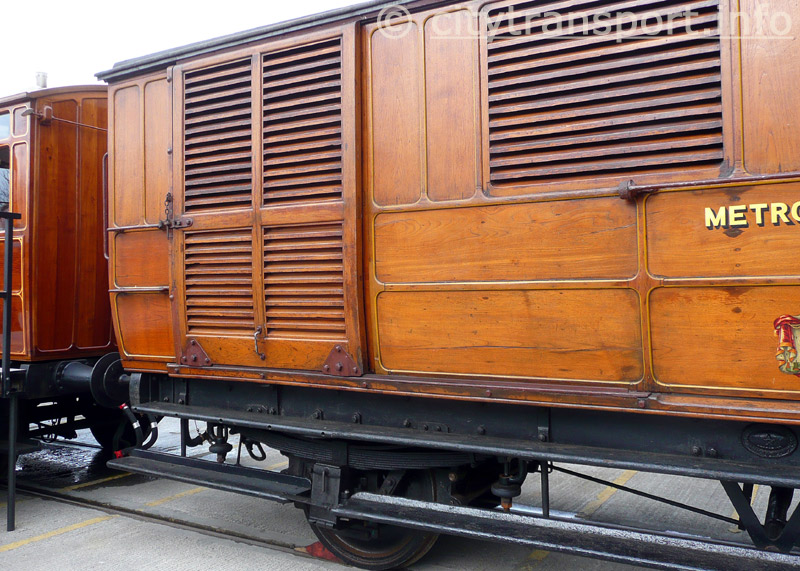

Metropolitan Railway goods wagon

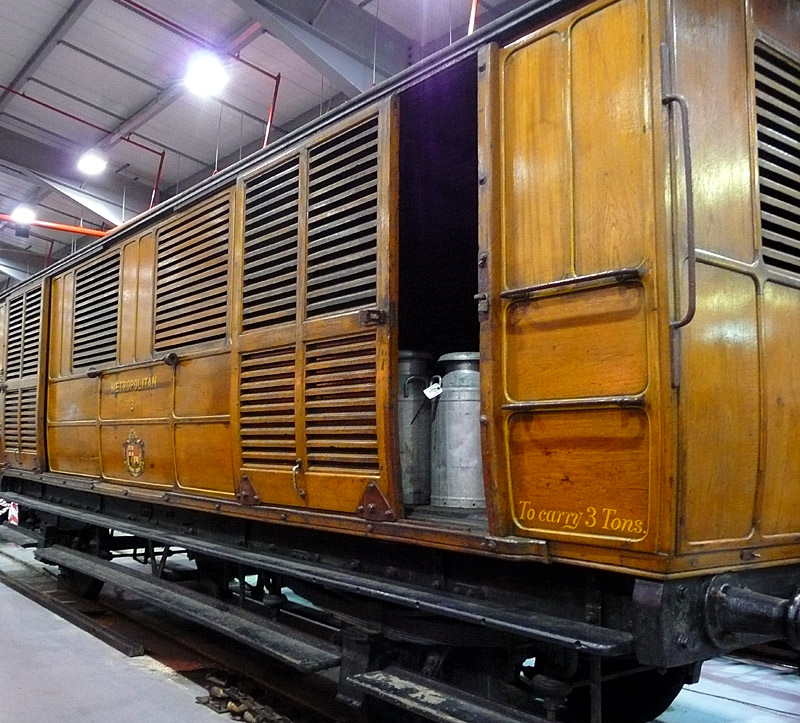

One of the sliding doors.

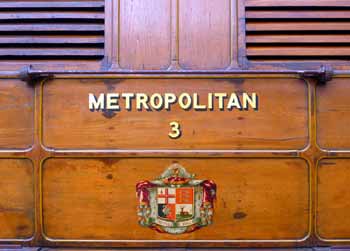

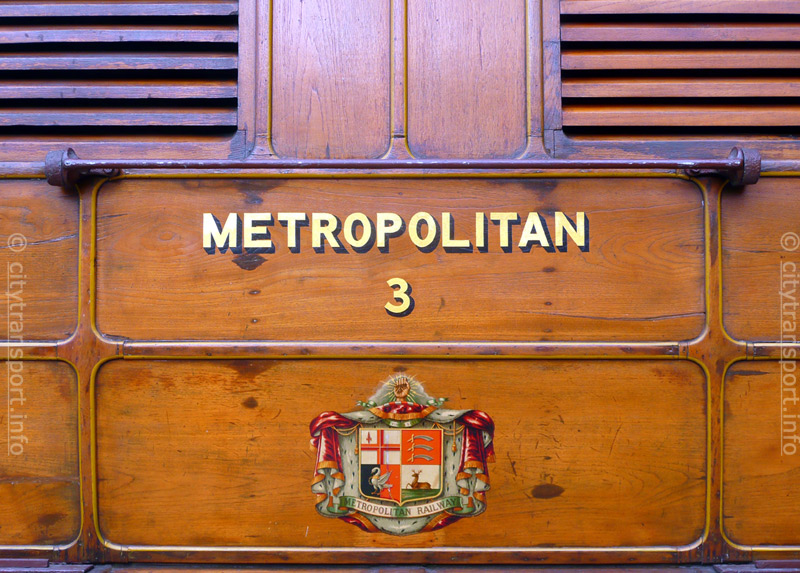

Metropolitan Railway Coat of Arms
The railway company name, the vehicle fleet number and the railway company coat of arms. The central section includes the insignia of the four counties which the Metropolitan Railway served, these being (clockwise from top left): the City of London, Middlesex, Hertfordshire and Buckinghamshire.

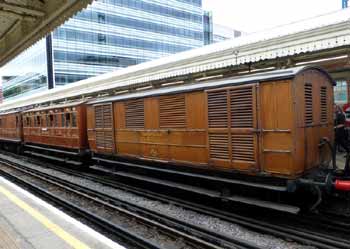

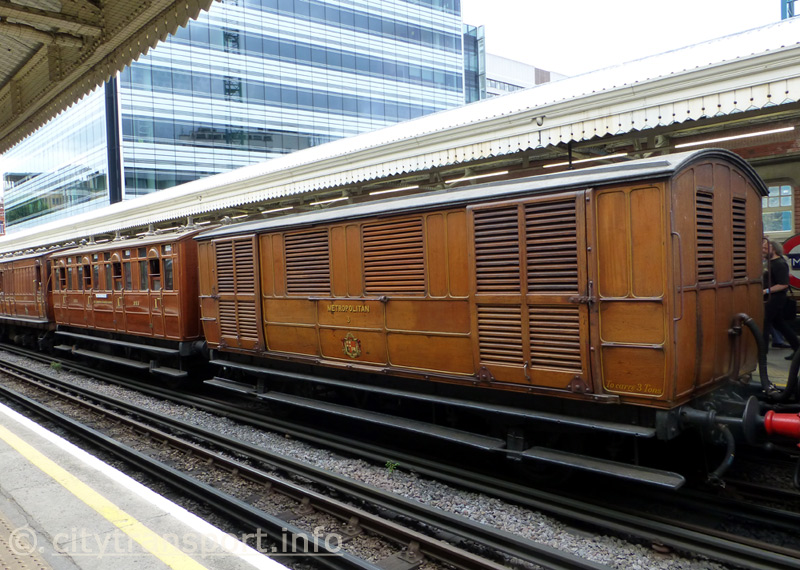

ventilated goods wagon
Jubilee Carriage No.353 and milk van No.3 at Hammersmith (Met) station, as seen in 2014.
Next to No.353 is Ashbury Brake third No.387, this is part of the Metropolitan Vintage Train, as described below.

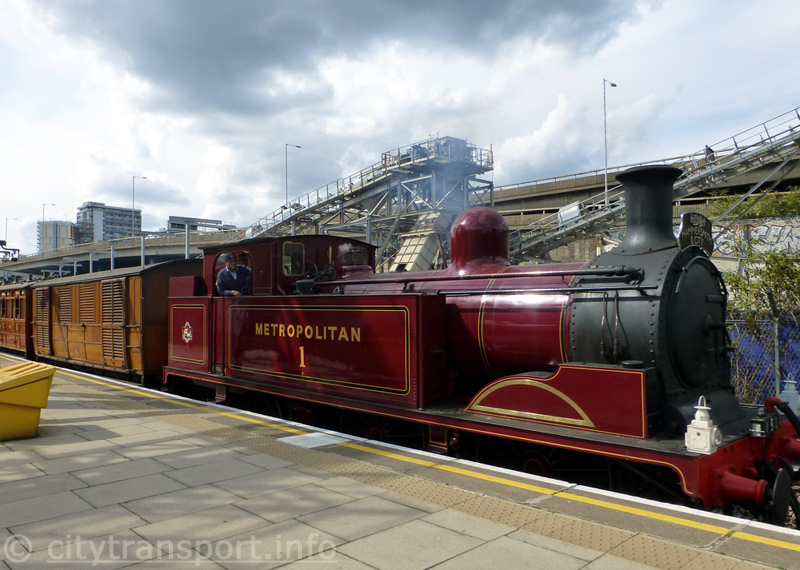

Metropolitan Railway Steam Locomotive No.1

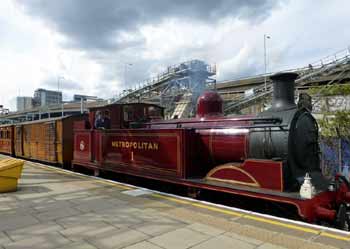

Milk van No.3 and Metropolitan Railway Steam Locomotive No.1 (which is leading the train)
pass through Royal Oak station whilst travelling from Hammersmith to Moorgate.


The Metropolitan Vintage Train

The Metropolitan Vintage Train comprises original Metropolitan Railway wood-bodied passenger carriages that date from between 1898 and 1900. To differentiate them from the four wheel carriages (such as No.353) which they replaced, the Metropolitan Railway named them as Bogie coaches. This would have been because the carriage bodies were carried on two four wheel bogies.

In 1905 the Metropolitan Railway started to electrify its urban services and the period 1906 - 1921 saw some of these Bogie carriages being rebuilt for electric traction and fitted with train drivers cabs.

Most of the fleet was withdrawn from service as new electric trains were introduced in the late 1930's, but with war looming they were only stored in case of emergency - and not scrapped.

In 1940 six Bogie carriages were re-purposed and rebuilt (again) for use on push-pull (autotrain) shuttle services between Chalfont & Latimer and Chesham. The conversion from self-powered electric traction to steam haulage included removing their electric motors and control gear (where fitted) plus replacing electric train driving controls with those suitable for controlling trains where a steam locomotive is at one end of the train. Formed as three-car trains the two trainsets were rostered for weekly cycles where one set was in service and the other set was in the depot for maintenance.

The steam locomotives used when in autotrain mode were provided by the London & North Eastern Railway (LNER) who called them type C13.
They were built in several batches between 1903 and 1905 by the Great Central Railway (GCR) who called them type 9K.

Chesham shuttle steam train

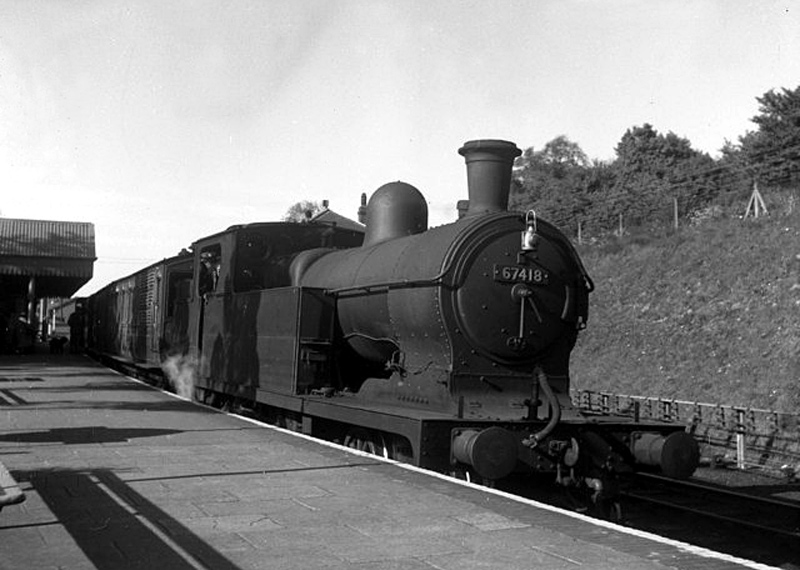

This 1957 photograph shows a class C13 4-4-2T locomotive and Ashbury passenger carriages at Chesham with a train for Chalfont & Latimer.
The visible ventilation grilles on the carriage nearest to the steam locomotive suggests that it might be Brake Third Bogie coach No.387.
Image & license: © Dr Neil Clifton / Geograph Project. CC BY-SA 2.0 http://www.geograph.org.uk/photo/470211.

These carriages were finally withdrawn in the early 1960's, when the route to Chesham was electrified. One carriage was reserved for the London Transport Museum, where it is still to be found. The other carriages probably would have been scrapped but the then fledgling Bluebell Railway was in urgent need of rolling stock and with finance in short supply it chose to buy four of the remaining carriages from London Transport because the purchase price was considerably lower than the amount British Railways wanted for its old passenger carriages. The other remaining carriage was scrapped. This was a carriage which in 1899 had been rebuilt as a motor coach in the experimental electric train that helped validate electric traction as being a viable solution.

The carriages which the Bluebell Railway bought have became known as the Chesham Set, which of course refers to the service on which had been operating. They include two carriages which at one end had normal couplings for attaching to locomotives and at the other ends special close couplings which were only compatible with other carriages that had similar close couplings. The other two carriages had close couplings at both ends. The purpose of the close couplings was to reduce the wasted space gap between carriages, so that it could be used to increase the train's passenger capacity. The same philosophy was also used during the advance design process of the fully articulated walk-through S Stock trains which have totally eliminated the gap between passenger carriages and since 2011 have been operating some of the services that at one time these trains wooden trains provided.

For the fledgling Bluebell Railway the Chesham Set was a godsend, as not only did they help make it possible for them to earn much needed funds through carrying passengers - and hence also become more established as a business - but it offered discerning passengers the choice of a type of train that (in those days) was not available on any other preserved railway. Even though now owned by the Bluebell Railway the Chesham Set was briefly welcomed back to London in 1963 when it joined in the Centenary celebrations of the Metropolitan Railway.

As the 1960's progressed and the carriages aged, leaking roofs and rotting wood eventually required them all to be taken out of service for repairs. For over 25 years this trainset was stored at the back of a carriage shed where it found a use as storage space for various items from other trains. The full story of how and why they came to be restored can be read on the Bluebell Railway BASH web pages which are dedicated to these carriages; this can be reached at one of the links below.

Perhaps of special interest will be the web page which is based upon an 1898 article published in The Engineer that includes a very detailed description of the (then) brand new carriages... dimensions, heating system, lighting, materials used, braking system and more. The information about their interior furnishings describes in much detail about how the compartments for the three classes of travel were differently furnished with increasing degrees of luxury. Unfortunately what remains unknown is the split between the three classes - the more spacious compartments suggests that possibly the composites were originally split between first and second class with the rest of the train being for third class passengers.

The Bluebell Railway has a large collection of both historic and vintage rolling stock. The trains in service vary according to whether it is a special event day or normal service day. Full details can be found at the website (see below). The Chesham Set carriages are used as part of their Victorian Train alongside other passenger carriages of significant vintage, including some four wheel carriages which originated on other railways in southern England.
Located on the border between east and west Sussex the Bluebell Railway's line is 11 miles (17.7 km) in length and in addition to several historic / restored stations the route includes a tunnel where it is possible to sample the dim night-time illumination inside the trains. The Bluebell Railway is easily reached by present-day normal service trains at East Grinstead station.

Award Winning Restoration

In 2007 the restoration of the Chesham Set was applauded as one of the most significant carriage restoration projects in the history of the preservation movement.

Although the more recent restoration of Gresley's London and North Eastern Railway (LNER) 1924 Quad-Art articulated carriages for the North Norfolk Railway means that the Chesham Set is no longer the only close-coupled set of preserved historic passenger carriages in the UK, the Chesham Set remains the oldest matching set of passenger carriages still able to carry passengers in the UK and when being transferred between the Bluebell Railway and London Underground these four carriages are the oldest fleet of passenger carriages that are allowed to travel on our mainline railway system.

Further reading / information sources: .
The Bluebell Railway website:   http://www.bluebell-railway.co.uk/

The first of several Bluebell Ashbury Supporters and Helpers (BASH) webpages about the Chesham Set and the project to restore them, with significantly more information than this page:
http://www.bluebell-railway.co.uk/bluebell/BASH/index.html

The BASH page which features the 1898 The Engineer detailed description of the (then) new Metropolitan Railway rolling stock:
http://www.bluebell-railway.co.uk/bluebell/BASH/engineer.html

More about the award winning restoration accolade:
http://www.bluebell-railway.co.uk/bluebell/cw_news/cwn-pic/met/award.html

The North Norfolk Railway (NNR) http://www.nnrailway.co.uk/index.php
The NNR page about the 1924 Quad-Art articulated carriages http://www.mandgn.co.uk/page.php?pid=19

Why Celebrate Trains From An "Urban Metro"?

Readers who know little of the history of the Metropolitan Railway and only understand concepts such as urban metro, commuter rail, long distance trains, etc,. may be somewhat perplexed to find that some historic passenger carriages which were built by what (using present-day terminology) they would think of an an urban metro should be held in such high esteem with respect of the entire British railway train system.

The answer is that these four passenger carriages are seen as being special because not only are they some of the oldest original rolling stock to have survived to the present era (ie: not pastiche replicas) but that there are enough of them to form an authentic trainset - rather than just single carriages.

As for the Met having been what nowadays is seen as an urban metro, it is necessary to look back to the early days of Britain's railways. The Metropolitan Railway dates from a time when there were over 100 independent railway companies here in the UK and with few - if any - of the present-day marketing labels for different types of passenger service having been invented, the railways were seen as railways - and nothing more! Whilst the Metropolitan Railway is famed for being the first railway which for much of its route travelled through tunnels below city streets, once it became established it quickly started to operate other services which were identical to the many other railways here in the UK. In addition to passenger trains (some local, some longer-distance express) it ran goods (freight) trains, it had branch lines, main lines, longer distance trains with Pullman Cars that offered freshly cooked light refreshments, and more.

The decline of the Met into its present-day format primarily came about because the British government introduced a law that forced the Met to be merged into a new London-wide transport organisation known as the London Passenger Transport Board (LPTB) who quickly set about closing some of the Met's rural services and hiving off the functions they did not want to operate to a different railway company (eg: goods services).

Photographs

The photographs showing the Chesham Set / Metropolitan Vintage Train date from 2000 - 2015. This includes at Rickmansworth station in 2000, visits to the Bluebell Railway in 2003 and 2012 and when they were in London in 2013, 2014 and 2015.

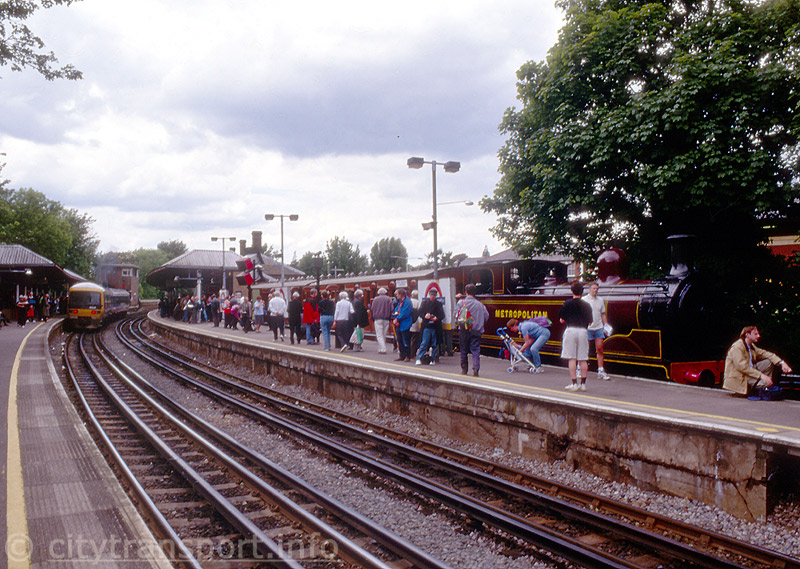

During the year 2000 "Steam On The Met" event Metropolitan Railway steam locomotive No.1 plus the first two of the fully restored carriages (Nos. 368 and 394) were placed in the little-used (and now disused) bay platform at Rickmansworth where they acted as static exhibits which showcased the ongoing refurbishment of the fleet and to help raise funds to complete the remaining two carriages.

In January 2013 and August 2014 the Metropolitan Vintage Train took part in celebrations for 2013 being 150 years since the 1863 opening of the Metropolitan Railway and 2014 being the 150th Anniversary of the Hammersmith & City railway which opened in 1864 - and is now served by Hammersmith & City and Circle Line trains. Also included in these trains were Jubilee carriage No.353 and milk van No.3.

These trains were powered by the historic Metropolitan Railway steam locomotive No.1 and Metropolitan Railway electric locomotive No.12 Sarah Siddons. What was most remarkable is that steam locomotive Met 1 was actually in steam, with these journeys (and the trial runs plus staff training trips in the months before the main event) possibly being the only times that a steam locomotive which was in steam had travelled through the tunnels which form the northern and western side of the Circle line in the last 100 years.

For each of the two events the special train made multiple journeys spread over two days. All journeys travelled west from Moorgate station along the original subterranean section of the Metropolitan Railway, with some journeys ending at Edgware Road station and others travelling onward to other western destinations which varied according to the special event timetable. During the second event in January 2013 there was also one journey which because of a points problem at Edgware Road had to make an unscheduled trip to Gloucester Road station (via High Street Kensington) in order to reverse its direction of travel. Although the route to Gloucester Road is no longer served by the Metropolitan Line, it was originally built by the Metropolitan Railway. So despite the cause having been 'a problem' it could be seen as being appropriate that the historic train made this unscheduled journey.

Although there were many well-wishers who had travelled specially to see (and film) the special train, there were also many genuine and unsuspecting passengers whose faces displayed utter astonishment when they saw it, complete with a live steam locomotive, passing through the stations where they were waiting on the platforms. What they told their friends and families when they returned home can only be imagined!

In September 2015 the Metropolitan Vintage Train plus Jubilee carriage No.353 and milk van No.3 took part in a "Steam On The Met" event which travelled between Amersham and Watford stations via a little used section of railway (known as the North Curve) between Rickmansworth and Croxley stations. At Watford passengers were able to enjoy afternoon tea in a pop-up tea room located on the station platform. To further enhance the proceedings there was some 1940's era background music.

Most images below are in 4:3 format, however especially for the external views of the longer carriages the camera was set to 16:9 format instead.

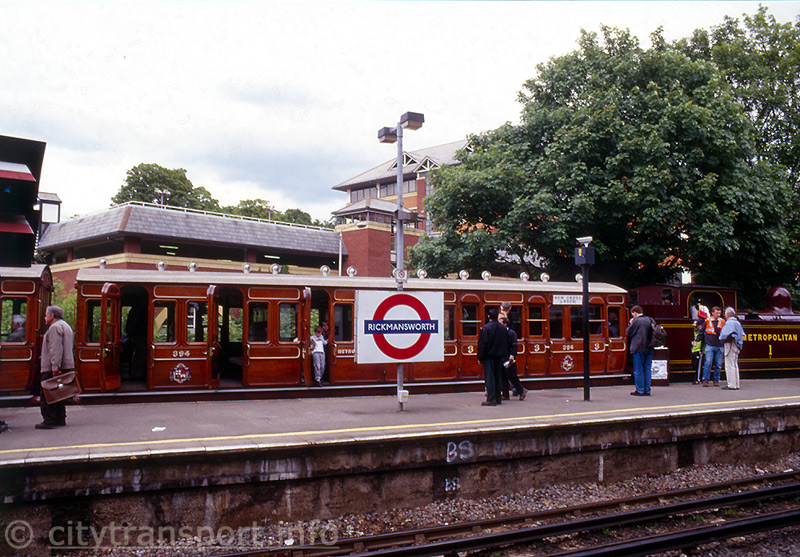

train in bay platform at Rickmansworth station
Steam locomotive Met No.1 plus carriages Nos. 368 and 394 in the bay platform at Rickmansworth station during the year 2000
"Steam On The Met" event. Also seen is a northbound Chiltern Railways Class 165 diesel multiple unit train in Network SouthEast livery.

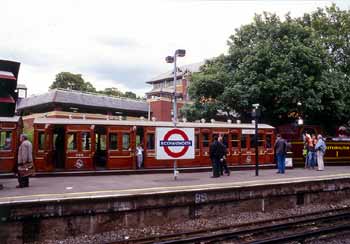

Ashbury carriage coach Rickmansworth station
A side view showing predominately coach No. 394 and steam locomotive Met No.1.

Ashbury carriage coach Rickmansworth station
An unobstructed view of part of Ashbury Carriage No. 394. The window glass reflections include of part of a Rickmansworth station name board and an A stock train which was calling at another platform at the same time as this photograph was being taken.

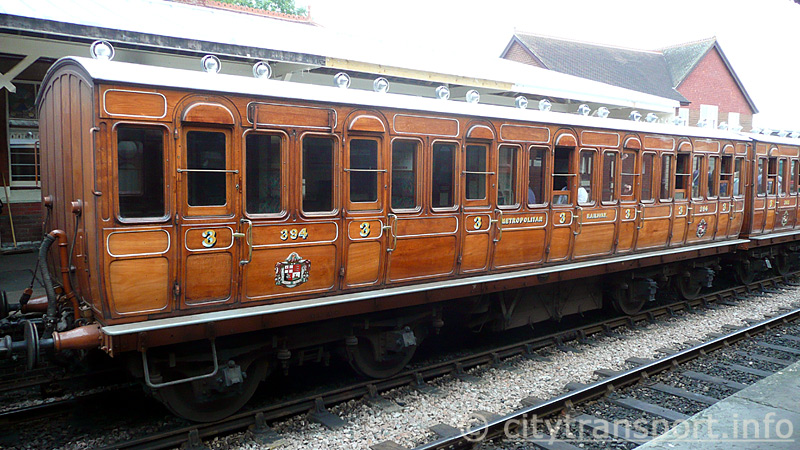

Ashbury full third carriage 394.
Full third carriage No.394, as seen in 2003 whilst in passenger service on the Bluebell Railway.

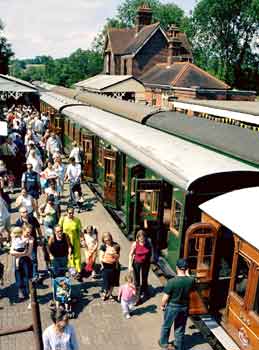

Southern Railway third class 100 seater
This 2003 view includes Ashbury carriage No.394 operating alongside some former Southern Railway third class 100 seater carriages.
These were so named because they have 10 compartments per carriage, each of which can seat 10 passengers (five a side).

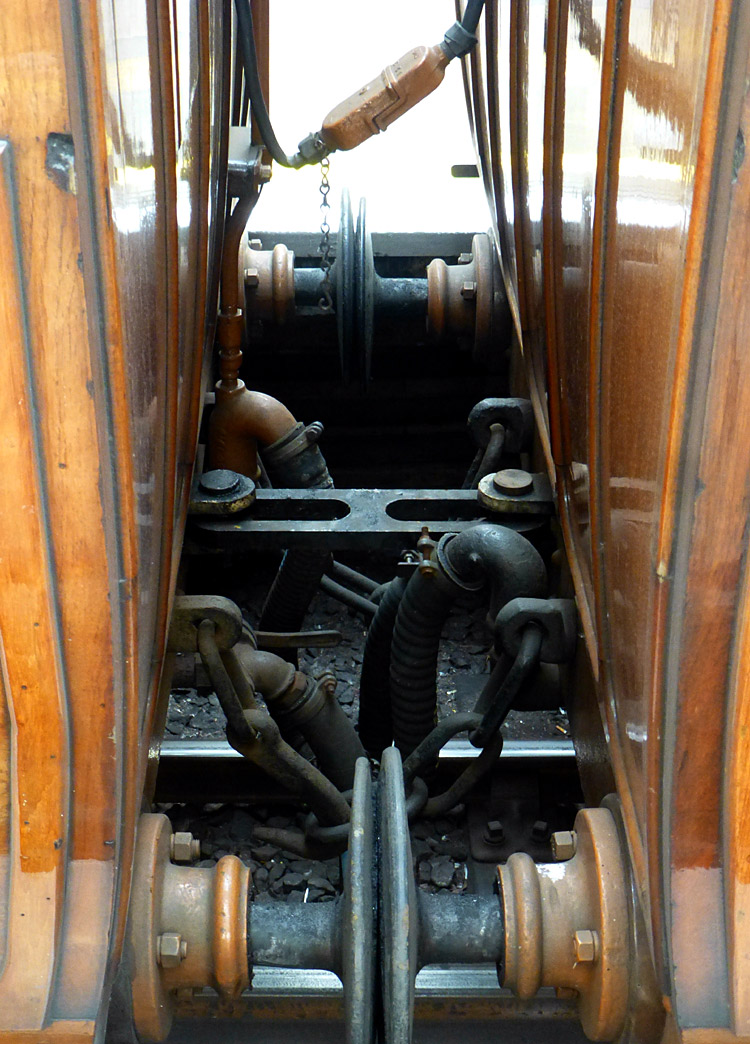

Ashbury carriage coupling bar
Although unfortunately spoilt by window reflections, this view which looks between two of these carriages shows a close-coupling bar.

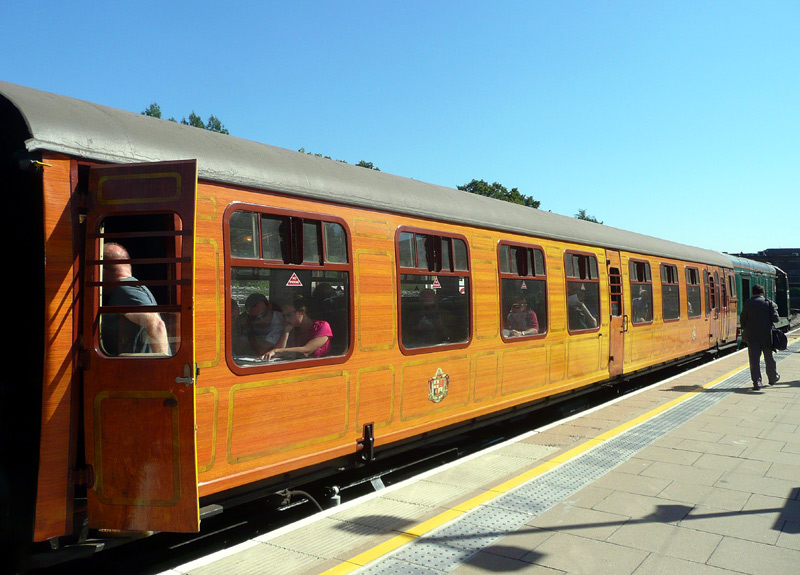

many open train doors

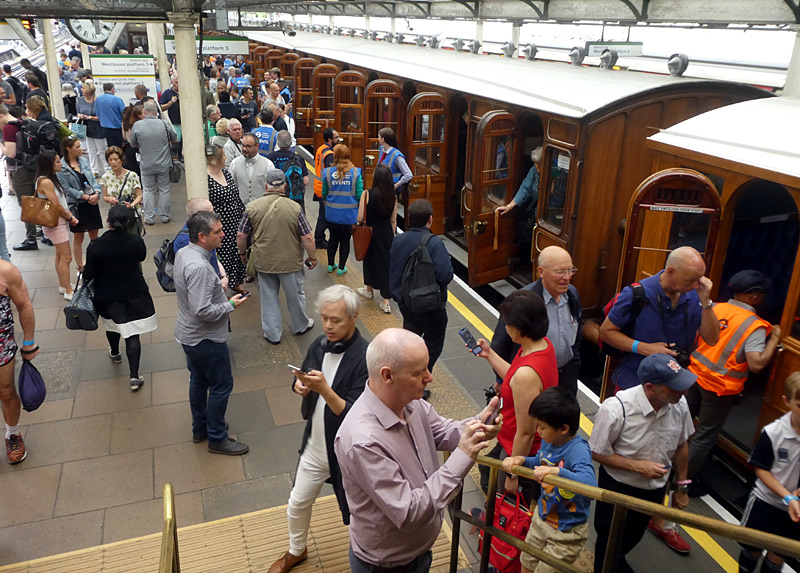

Especially on warm summer days it was not unusual for alighting passengers to leave the doors open when at terminus stations.
This was seen during the 2015 Steam On The Met event when the train was at Watford (Met) station.

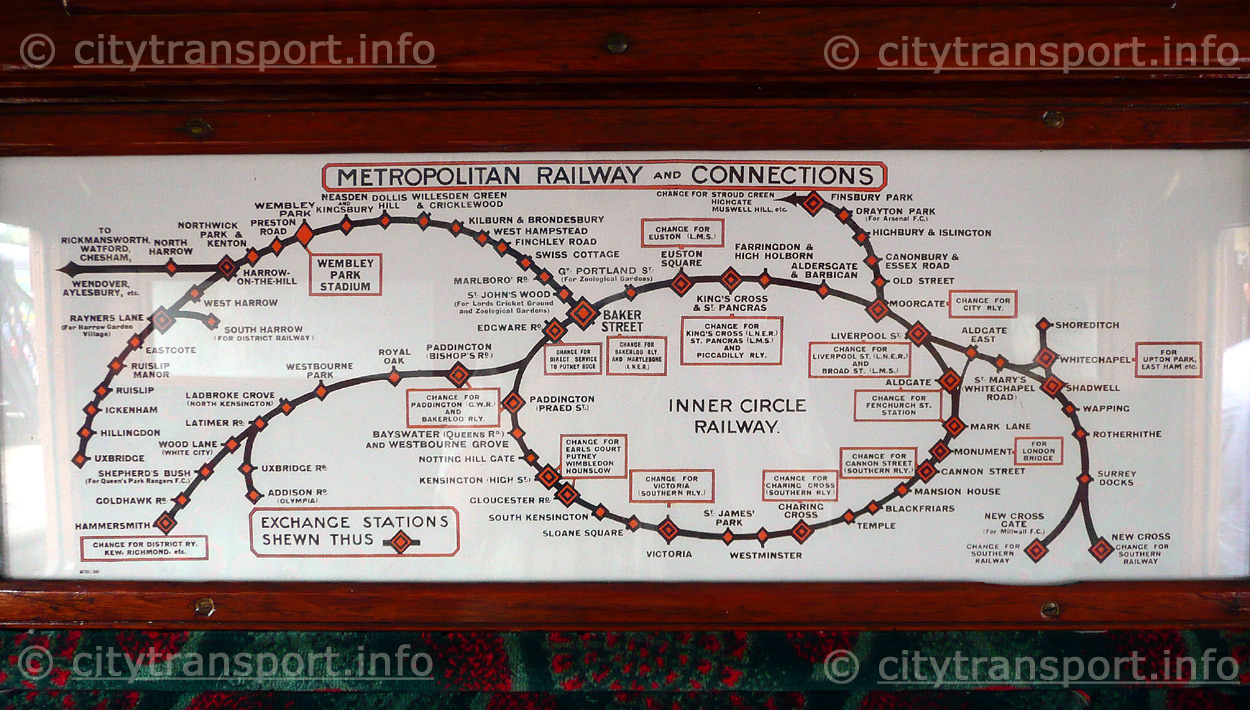

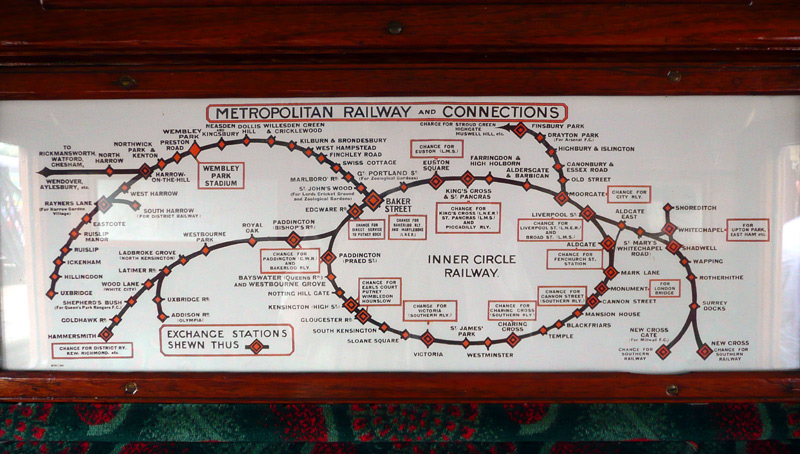

Metropolitan Railway route map
A Metropolitan Railway route map, probably from after 1926.
Clicking this link will open a version of this photograph (in a new window) where it will be just about possible to read the text in the image .

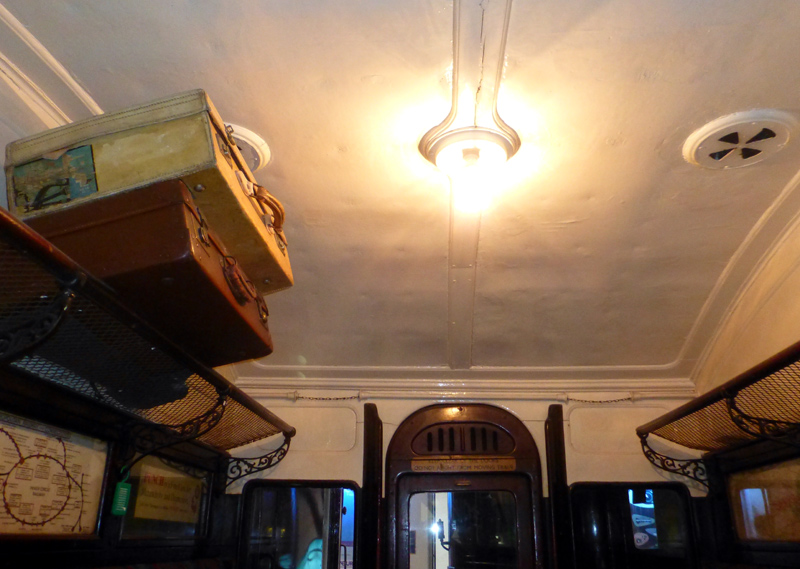

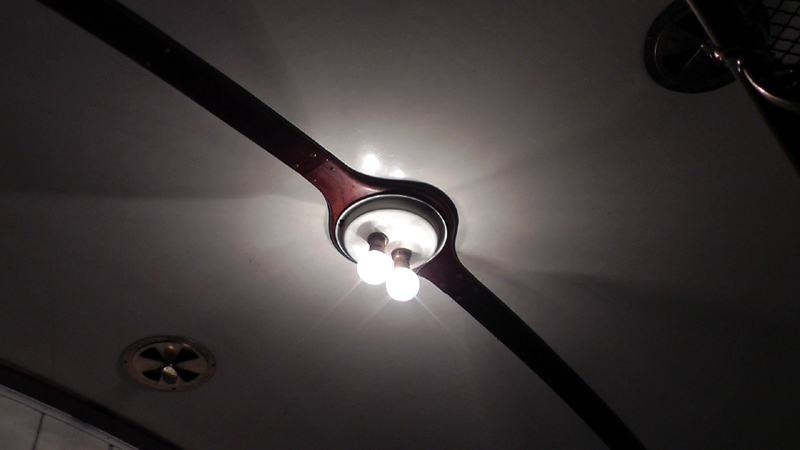

Ashbury carriage light bulbs
The third class compartments feature two light bulbs, so that should one fail the passengers will not be completely in the dark
when travelling through a tunnel or at night. Of course it must have sometimes happened that they both blew at the same time...
This image was taken whilst passing through the Bluebell Railway's 731 yards / 668 metre Sharpthorne tunnel.

film projector icon
A film showing a visit to the Bluebell Railway during a Thomas The Tank Engine event in 2003 has been placed on the ‘YouTube’ film / video website and can be watched (in new windows) by clicking the links below: .

The Four Chesham Set / Metropolitan Vintage Train Bogie Coaches

Metropolitan Railway Full Third Bogie coach No.394 (LT 518)

This seven compartment carriage was built at the Ashbury Railway Carriage & Iron Co. of Manchester (Ashburys) in 1900. In 1921 the outer end compartment was rebuilt as a driver's cab of an electric multiple unit train. In 1940 this carriage was further rebuilt to become a push-pull control (ie: driving) trailer for the steam powered Chesham service. Although nowadays restored to its original format, Ashbury carriage No.400 at the London Transport Museum shows what this carriage would have looked like after it was rebuilt as a control trailer (this is seen below).

Link to the Vintage Carriages Trust web page about this carriage:
http://www.cs.vintagecarriagestrust.org/se/CarriageInfo.asp?Ref=1078 .

Ashbury full third carriage 394.
Full third carriage No.394.

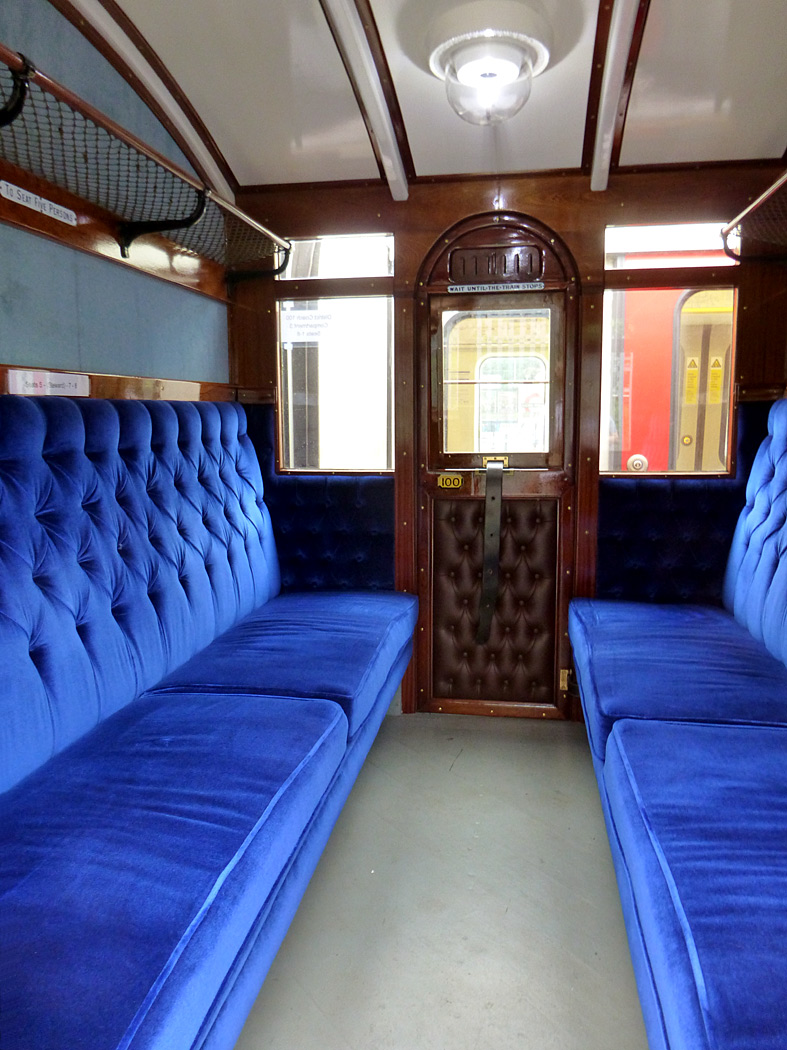

Ashbury train third class compartment

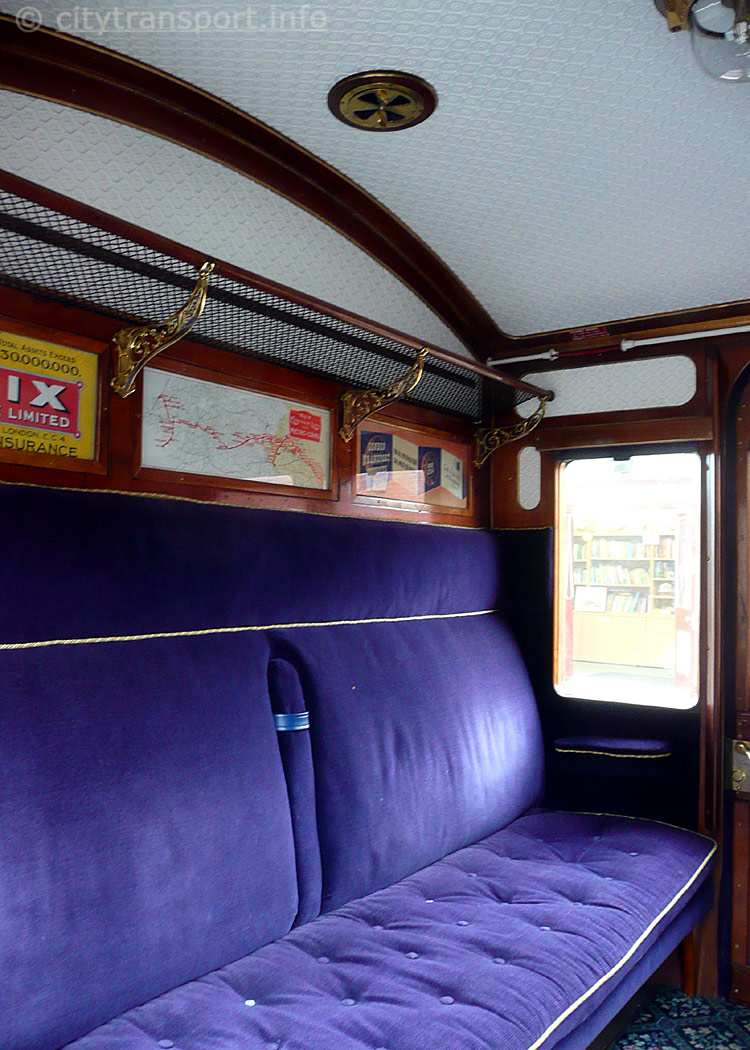

Looking inside the functional but rather austere third class compartment.

Note the fully upholstered single full-width bench type seating. The lighting was battery electric.
The air vents in the ceiling were a feature of smoking compartments (cigarettes, cigars, pipes, etc.)

Metropolitan Railway Brake Third Bogie coach No.387 (LT 512)

This five compartment carriage was built at Ashburys in 1898. In circa 1907/8 it was rebuilt as an electric driving motor coach with four compartments and electric control gear in part of the luggage area. It was soon realised that there was now insufficient luggage space and a passenger compartment was converted into a guard's and luggage compartment. In 1940 the removal of the electric motor equipment in the brake van area meant this space was now available again for luggage, so the fifth compartment was restored back to passenger use.

The conversion to an electric motor carriage extra including fitting ventilation grilles to the brake van area. These were removed and the original side panels reinstated by the Bluebell Railway as part of preparations for this carriage to be used in a BBC filming project.

Link to the Vintage Carriages Trust web page about this carriage:
http://www.cs.vintagecarriagestrust.org/se/CarriageInfo.asp?Ref=1077 .

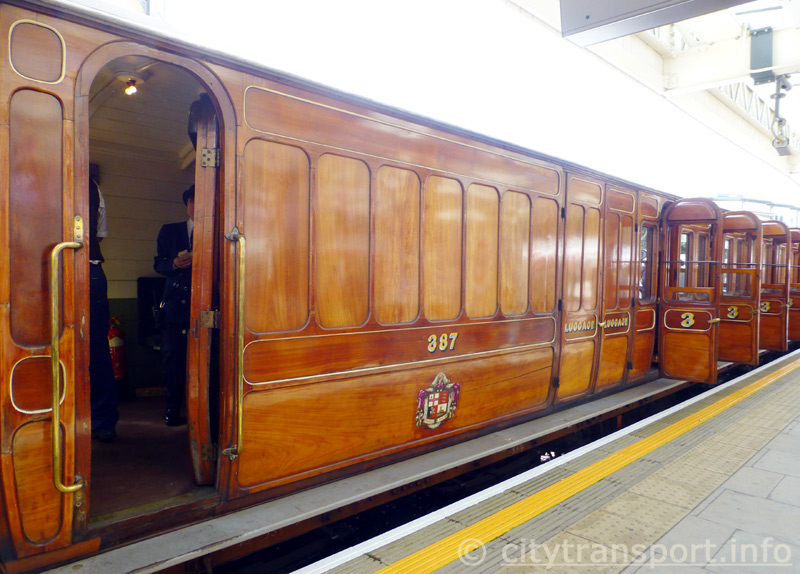

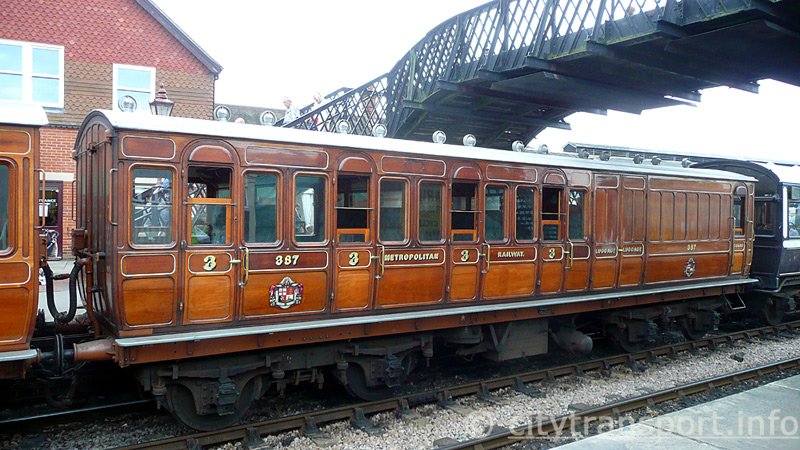

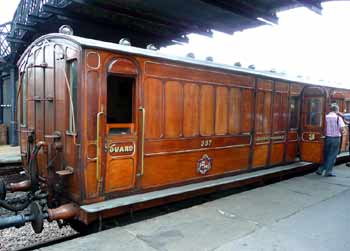

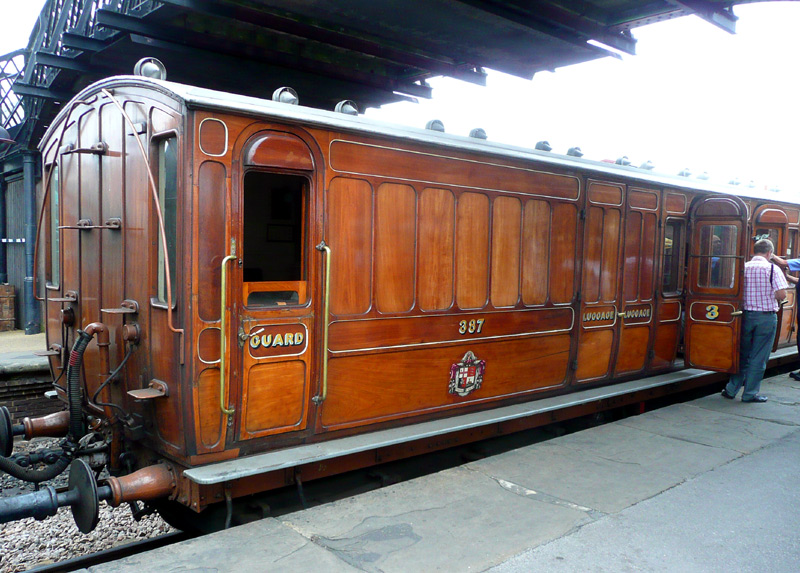

Ashbury brake third carriage 387 guard luggage end
The guard and luggage end of Brake Third carriage No.387.

Ashbury brake third carriage 387 passenger compartment end
The other end of this carriage.
At the brake end No.387 is coupled to London & North Western Railway (LNWR) 1913 third class Observation Coach No.1503.

Ashbury brake third carriage 387 open guard door
The guards' door is open and we peek inside.

Ashbury brake third carriage 387 luggage compartment doors

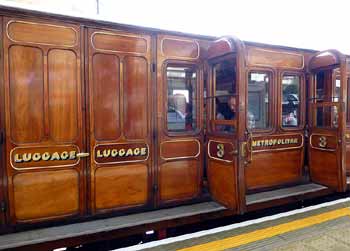

The luggage compartment doors.

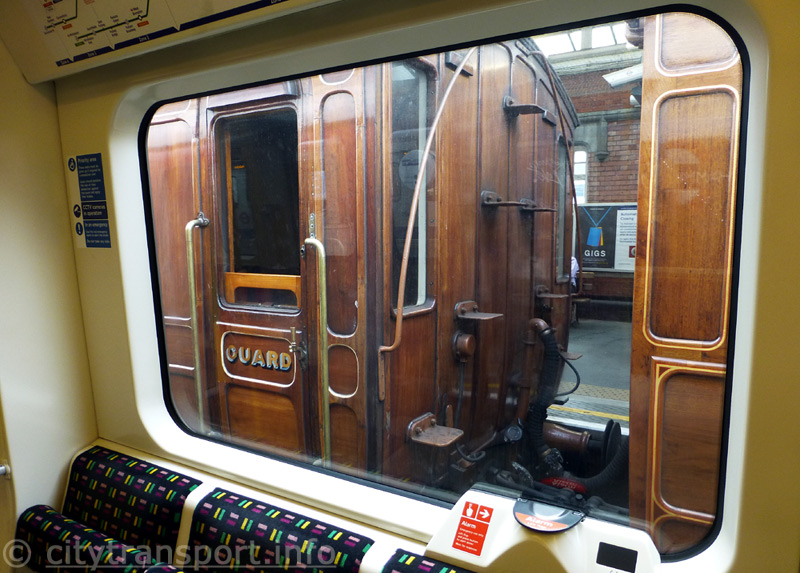

S stock window Ashbury carriage
This view of the guards' door on Brake Third No.387 was taken whilst standing in the part of an S Stock train which is dedicated to people who use wheelchairs. In addition to showing the end glazing on the brake carriage it acts as a reminder that whilst nowadays people who can not walk travel with everyone else, there was a time when the only part of a train which was accessible to wheelchair passengers was the unheated goods area next to the guards's compartment.

Ashbury brake third carriage 387 restoration.

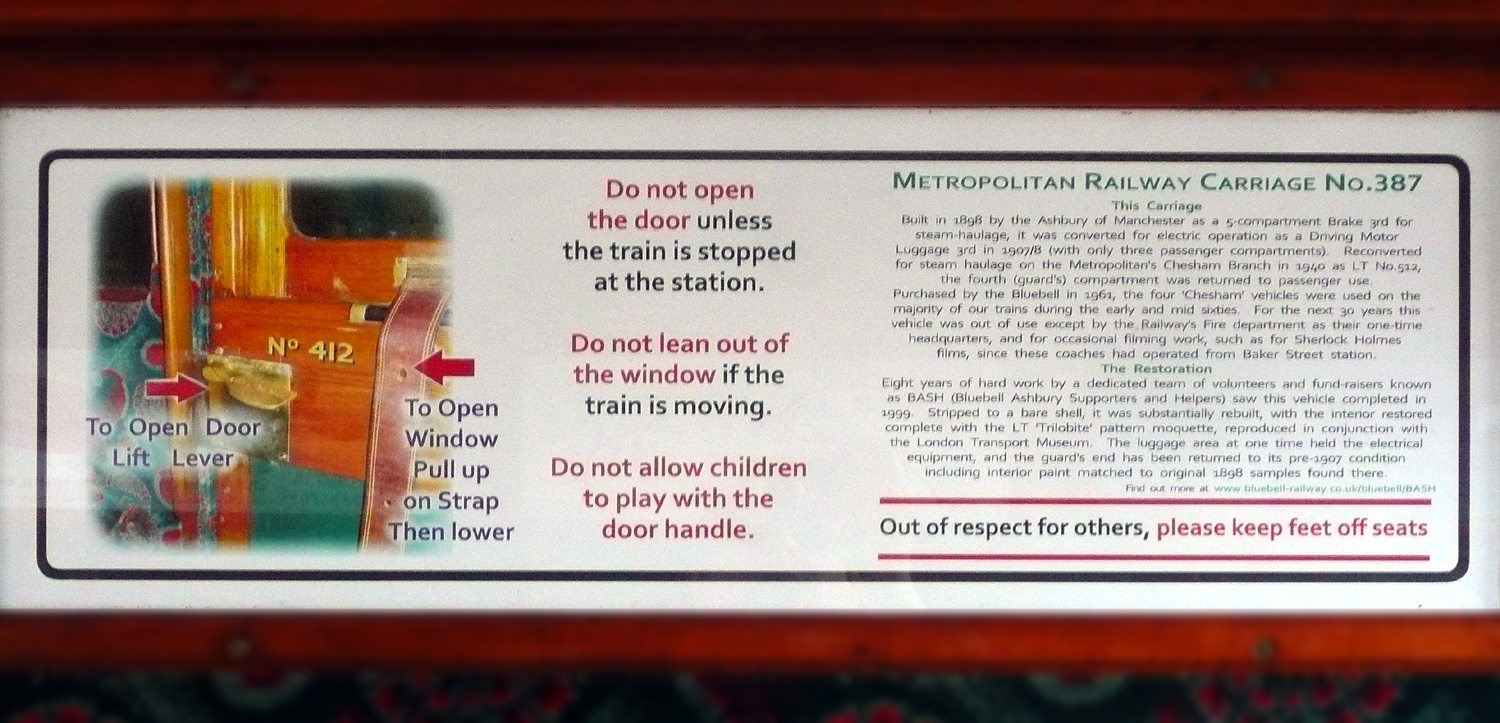

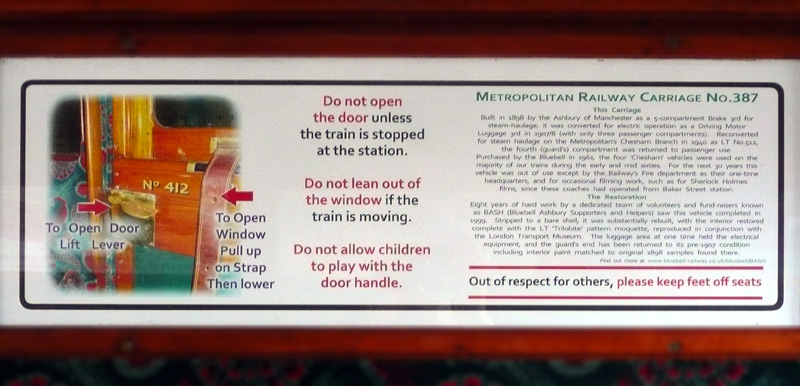

More about carriage 387 and its restoration.
Clicking this link will open a version of this photograph (in a new window) where it will be just about possible to read the text in the image .

Metropolitan Railway First / Third Composite Bogie coach No.368 (LT 515)

This six compartment carriage was built at Ashburys in 1898. It seats 24 first class passengers in three spacious compartments and 30 third class passengers in the other three compartments. Between 1906 and 1940 this carriage was part of an electric multiple unit train, for the rest of its life it was part of a locomotive hauled steam train.

As part of the 1940 conversion for Chesham services the first class compartments were downgraded to third class and the folding arm rests were removed. These were reinstated as part of the BASH restoration project.

Link to the Vintage Carriages Trust web page about this carriage:
http://www.cs.vintagecarriagestrust.org/se/CarriageInfo.asp?Ref=1076 .

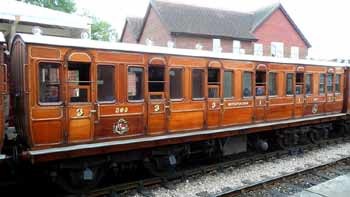

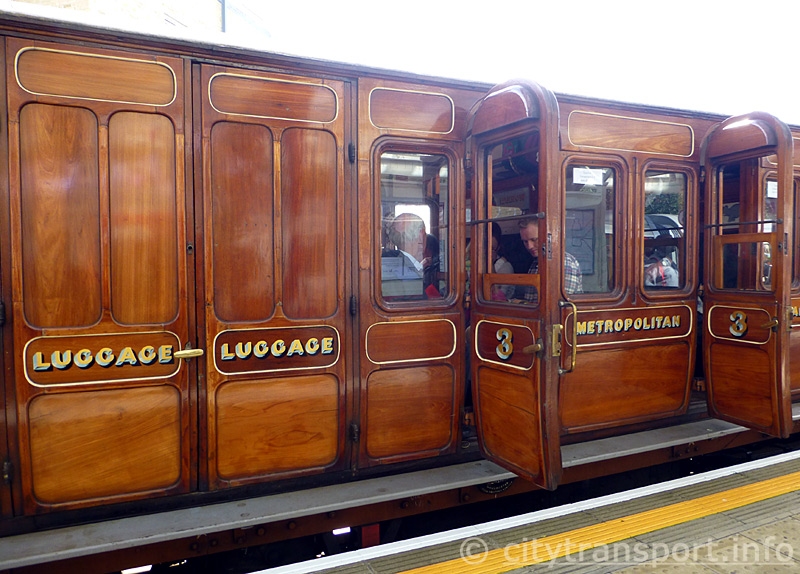

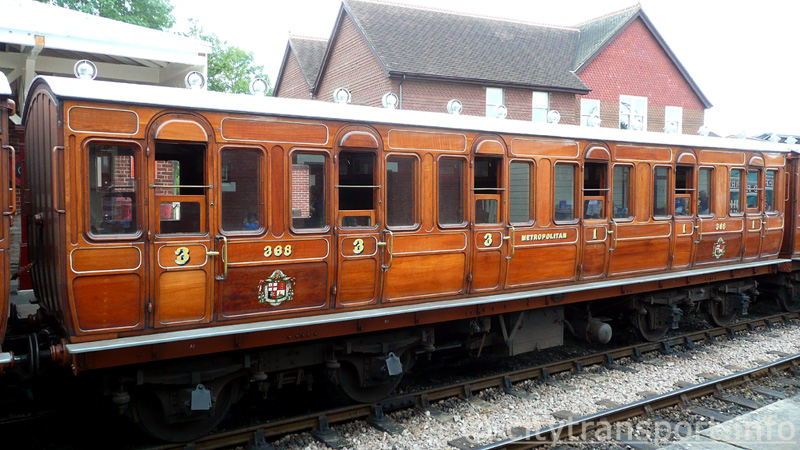

Ashbury first / third composite carriage 368.
First / third composite Ashbury carriage No.368.

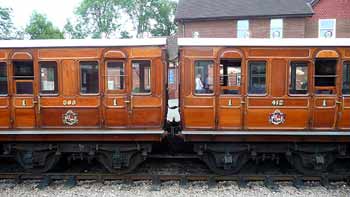

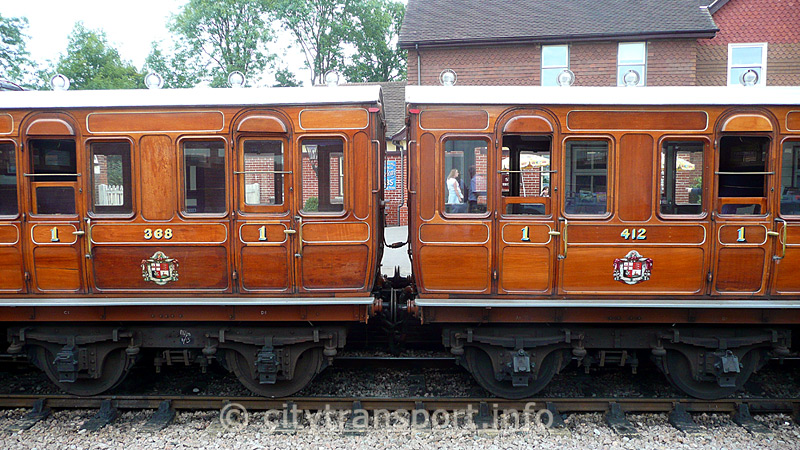

first class compartments Chesham Set
Some of the first class compartments in carriages Nos.368 and 412.

Chesham Set S stock train Hammersmith
First / third Composite Ashbury carriage No.368 and an arriving S Stock train at Hammersmith (Met) station.

These wonderfully restored and luxuriously furnished varnished teak wooden carriages (especially in first class)
make for a stark contrast with trains of the present era!

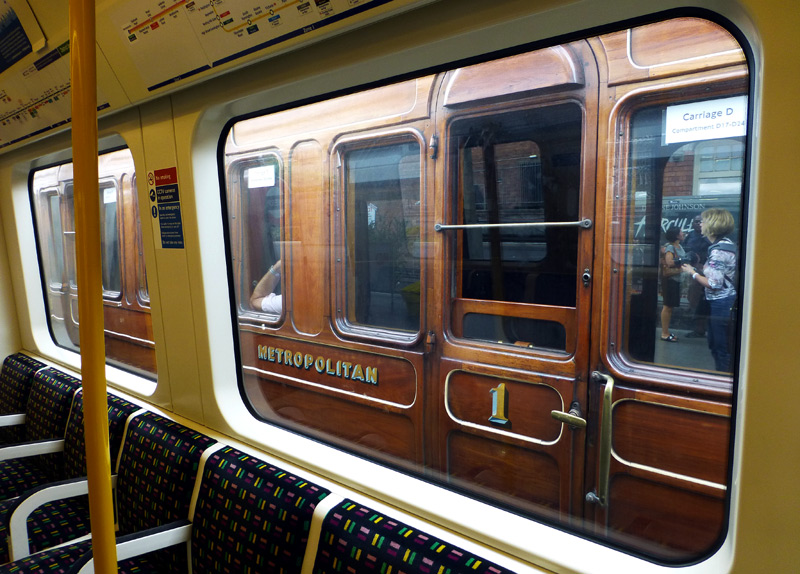

Ashbury first class compartment S stock train Hammersmith
Looking through a train window whilst at a station and seeing another train on an adjacent track is not normally noteworthy, however the view seen here is one which it will not be possible to replicate too often. Whilst S stock trains do have many comfortable features they are still standard class... first class was withdrawn from the Metropolitan Line in 1941, as a wartime economy. It was never reinstated.

Ashbury first / third composite carriage 368 restoration.
More about carriage 368 and its restoration.
Clicking this link will open a version of this photograph (in a new window) where it will be just about possible to read the text in the image ..

Metropolitan Railway First / Third Bogie coach No.412 (LT 516)

Because Ashburys had full order books so were unable to accept the extra work, this six compartment carriage was built at Cravens, in 1900. It seats 24 first class passengers in three spacious compartments and 30 third class passengers in the other three compartments. Between 1906 and 1940 this carriage was part of an electric multiple unit train, for the rest of its life it was part of a steam train.

As part of the 1940 conversion for Chesham services the first class compartments were downgraded to third class and the folding arm rests were removed. These were reinstated as part of the BASH restoration project.

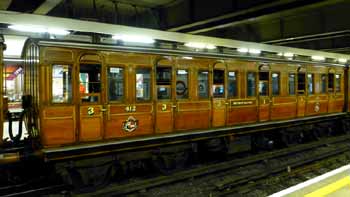

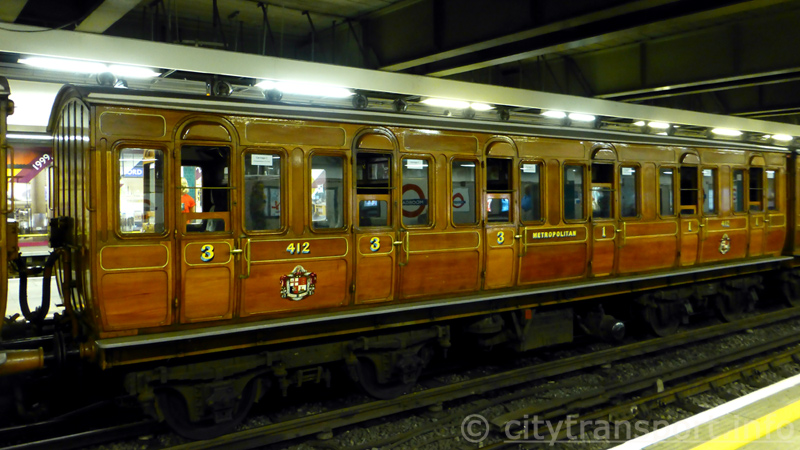

Cravens 1st / 3rd composite carriage 412.
First / third composite carriage No. 412 at platform 4, Moorgate station. Part of the LU150 timewall can be seen in the background.

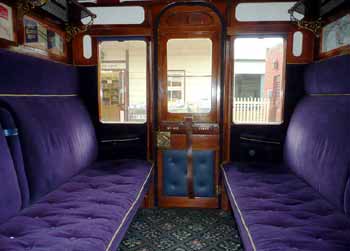

landscape view inside first class compartment Chesham set
Looking inside a first class compartment in carriage No.412.

portrait view inside first class compartment Chesham set
A different view inside the same compartment.

Link to the Vintage Carriages Trust web page about this carriage:
http://www.cs.vintagecarriagestrust.org/se/CarriageInfo.asp?Ref=1080 .

film projector icon Some videos showing the Metropolitan Vintage Train in action (together with Jubilee carriage No.353 and milk van No.3) have been placed on the ‘YouTube’ film / video website and can be watched (in new windows) by clicking the links below.
The films are grouped according to event. .

Locomotives: In both January 2013 and August 2014 traction came from Metropolitan Railway Electric Locomotive No. 12 Sarah Siddons (built 1923) and Metropolitan Railway Steam Locomotive No. 1 (built 1898) which were located at opposite ends of the train.

London Underground 1863 - 2013 150th anniversary Steam Train Event in January 2013

  • LU150 Steam Train passing through the District and Circle line platforms at Paddington Underground Station.
    This was the first journey of the day, the train was travelling from Kensington Olympia to Moorgate.
    https://www.youtube.com/watch?v=tM3_p3gHKBA
  • LU150 Steam Train passing through Kings Cross St Pancras Underground Station.
    https://www.youtube.com/watch?v=MrOvKgD2yso
  • LU150 Steam Train Departs from Edgware Road subsurface Underground Station.
    https://www.youtube.com/watch?v=fEoVJcHe38Y
  • LU150 Steam Train passes through Barbican Underground Station during a blizzard!
    https://www.youtube.com/watch?v=pXN2abRqIOw
  • LU150 Steam Train Baker Street Station Smoke / Magic Train Transformation.
    Sometimes in magic shows the act will include something which disappears in a puff of smoke and then after a flash of light re-appears totally transformed.

    This film shows just this happening at the iconic 1863 platforms at Baker Street station... it uses real smoke, real trains carrying fare-paying passengers, real flashes of light, real transformation, real magic, but no mirrors!
    The magic occurs at the end of the film.
    https://www.youtube.com/watch?v=EF4GkCk7BMU

Hammersmith & City Branch 1864 - 2014 150th anniversary Steam Train Event in August 2014


Other Events

Locomotives: For both films below traction came from Great Western Railway 4575 Class Prairie Tank steam locomotive No. 5521 (built 1927) in London Transport 150 livery, Metropolitan Railway Electric Locomotive No. 12 Sarah Siddons (built 1923) and Metropolitan Railway Steam Locomotive No. 1 (built 1898).

  • Steam Train Positioning Move - filmed on 12th August 2014 the Metropolitan Vintage Train and Jubilee Carriage No.353 are seen passing through Sudbury Town station whilst travelling from Northfields Depot to Ruislip Depot. Also seen is a 1973 Tube Stock Piccadilly Line train.
    https://www.youtube.com/watch?v=Ea_xxSFOfXQ
  • Steam On The Met & Pop-up-Tea Room Filmed on Sunday 13th September 2015 the Metropolitan Vintage Train Jubilee Carriage No.353 and milk van No.3 are seen at Rickmansworth, Watford (Met) and Croxley stations plus crossing the Grand Union Canal near to Watford. Unusually, the Jubilee carriage and the milk van are at opposite ends of the train. Also of interest is the very loud whistle as the train arrives at Watford.

    Also seen is a 'pop-up tea room' on the island platform at Watford station. Tea was served by ‘Tea Darling’ who are organisers of quirky and tailor-made vintage tea parties. This event was run by the London Transport Museum as part of celebrations for it being 90 years since Watford (Met) station opened in 1925.
    https://www.youtube.com/watch?v=OXm-PvXAOjc

The Ashbury Bogie Coach At The London Transport Museum

Metropolitan Railway Full Third / Control Trailer Bogie coach No.400 (LT 519)

This seven compartment carriage was built by the Metropolitan Railway at its Neasden works in 1900. In 1921 the outer end compartment was rebuilt as a driver's cab of an electric multiple unit train. In 1940 it was further rebuilt to become a push-pull control (ie: driving) trailer for the steam powered Chesham service. When the Chesham service was converted to electric traction this carriage was specially set aside to become an exhibit in a museum.

Nowadays No.400 can be found at the London Transport Museum in Covent Garden, central London. Prior to coming to the museum it was restored externally to its unpainted varnished teak format of the 1920s, when it was used as part of an electric train. However as it is only used as a static exhibit it still retains the autotrain control equipment which was fitted for the steam powered Chesham shuttle service.

Although the restoration was intended to show the carriage as it was in the 1920s when it worked on the route to Uxbridge, carriage No.400 is fitted with destination boards for Rickmansworth - which between 1925 and 1960 was the northernmost extent of electric traction. Most likely these trains did also serve Rickmansworth - albeit not as part of journeys from London Baker Street station to Uxbridge!

This carriage is loosely 'on topic' for a page about vintage and heritage carriages which sometimes still carry passengers on part of the London Transport railway system because one of the compartment doors has been fixed open, so whilst no-one will actually be travelling anywhere museum visitors may enter the compartment and sample the ambiance and seating.

This carriage also offers visitors a reminder of something that at one time was a common feature on many railways but in the present era has not been seen demonstrated anywhere else - not even at a Living Museum. This is a Ladies Only compartment. The idea behind these compartments was to reserve part of the train as somewhere where only ladies were admitted, so that they (especially if travelling alone) should be safe from men who would commit sexist crimes - and worse.

Link to the Vintage Carriages Trust web page about this carriage:
http://www.cs.vintagecarriagestrust.org/se/CarriageInfo.asp?Ref=1079 .

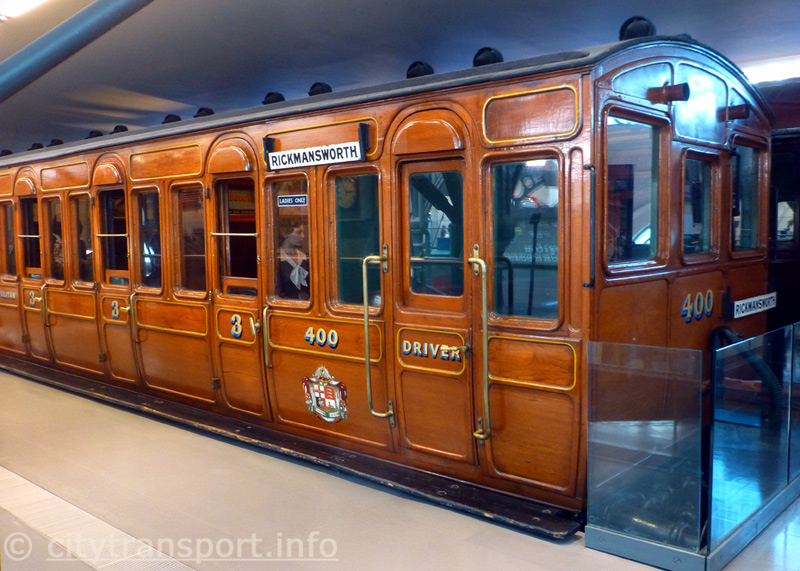

Bogie coach carriage No.400 London Transport Museum
Ashbury Bogie coach No.400 at the London Transport Museum.
The Ladies Only compartment is next to the compartment which is being used as a train driver's cab.

Train Driver Cab Area
Looking into the drivers' cab. Photographed using a flashgun whilst looking through a glass window,
the image also needed to be significantly tweaked to brighten the view.

Ladies only train compartment
Looking through the open window of the Ladies Only compartment.

Ceiling view - ventilators, lights, luggage racks
Inside a different compartment, showing the luggage racks, ceiling ventilators and more. The two chains above the windows
on the far side of the carriage are the communication cord which passengers could use to stop the train in an emergency.

Other Metropolitan Railway Bogie Style (8 Wheel) Slam Door Compartment Rolling Stock

The Metropolitan Railway (the Met) actually built two other fleets of bogie style (8 wheel) hand-operated slam door compartment trains.

One of these dates from 1910. Known as Dreadnoughts, these wood bodied carriages were essentially the same (in format) as those built by the many mainline railways throughout the British Isles. Although some of them were used in electrically powered multiple-unit type trains, most of them were locomotive hauled on Aldgate - Baker Street - Amersham - Aylesbury - Verney Junction services which swapped between steam and electric traction during station stops at either Harrow-On-The-Hill or (after 1925) Rickmansworth stations. A few of these trains also included a Pullman car which offered freshly cooked light refreshments during the journey.

The other fleet of bogie style (8 wheel) slam door compartment trains which the Met built were introduced in 1927, with the last examples being built in 1932, which was the year before the Met lost its independence and was forced to become part of the London Passenger Transport Board - LPTB. The early examples had wood bodies whilst the later versions had steel sides. Built for services to Rickmansworth and Watford, these maroon liveried carriages were of the self-propelled  'electric multiple unit' type. They eventually became known as the T Stock.

Neither of these other carriages are illustrated on this page. This is because whilst a few examples remain extant and the Dreadnoughts even still carry passengers (at the Keighly & Worth Valley railway and the Quainton Railway Centre [also known as the Buckinghamshire Railway Centre]) they are no longer used on the present-day London Underground railway network.

Further reading / information sources / places to visit: .
Dreadnoughts
http://www.vintagecarriagestrust.org/metfirst.htm
http://www.vintagecarriagestrust.org/metbrake.htm
http://www.cs.vintagecarriagestrust.org/se/CarriageInfo.asp?Ref=1082
T Stock
http://www.cs.vintagecarriagestrust.org/se/CarriageInfo.asp?Ref=1074
http://www.cs.vintagecarriagestrust.org/se/CarriageInfo.asp?Ref=1075

http://kwvr.co.uk/ Keighly & Worth Valley railway
http://bucksrailcentre.org/ Buckinghamshire Railway Centre

The London Transport Museum Heritage Train

Formerly known as the Metropolitan Heritage Train but nowadays called The London Transport Museum (LTM) Heritage Train this comprises an ex-British Railways Class 438 4TC (trailer control) multiple-unit fixed formation set of four carriages. At each end of the train is a DTSO / driving trailer second open carriage (Nos. 76297 & 76324), between them is TFK / trailer first corridor (No. 71163) and TBSK trailer brake second corridor (No.70283). Travelling in the compartments of the two side-corridor carriages is especially nostalgic, and first class is especially comfortable!

Originally the Mk 1 carriages which form the Class 438 trains were locomotive-hauled, they were converted to multiple-unit format by BR at York Works in two batches in 1966-1967 and 1974. In this format they were primarily used on services between London Waterloo and Weymouth. Between London and Bournemouth they operated in push-pull mode with a high power (3200 HP) 4REP four carriage electric multiple-unit attached at the London end of the train, whilst over the un-electrified line between Bournemouth and Weymouth they would operate in push-pull mode with a Class 33/1 diesel locomotive at the Weymouth end of the train (and without the 4REP units).

Two sets of Class 438 carriages plus another Mk1 and four Mk2 passenger carriages were purchased from British Rail (BR) in 1992. They were purchased because it was found to be cheaper than hiring rolling stock (from BR), which had been the practice since the first Steam On The Met event in 1989. These were all painted in Metropolitan Railway maroon livery.

After privatisation of the Underground these carriages were advertised for sale, with one 4TC set and all four Mk2 carriages actually finding new homes with various living museum railway operators. However one 4TC set remained unsold and ended up being used for more leisure events which involved Sarah Siddens and either steam or diesel locomotives. To enhance its new-found status as The Metropolitan Heritage Train it was covered in a vinyl wrap themed along the unpainted teak (ie: wooden) bodied carriages which at one time the Metropolitan Railway used on this route. Typically it is hauled by at least two locomotives (one each end) as this makes it easier to reverse the direction of travel and reduces the chance of the train delaying normal passenger services should one of the vintage locomotives develop a fault and be unable to power the train.

This link leads to more information about this type of train at Wikipedia encyclopædia.
http://en.wikipedia.org/wiki/British_Rail_Class_438 .

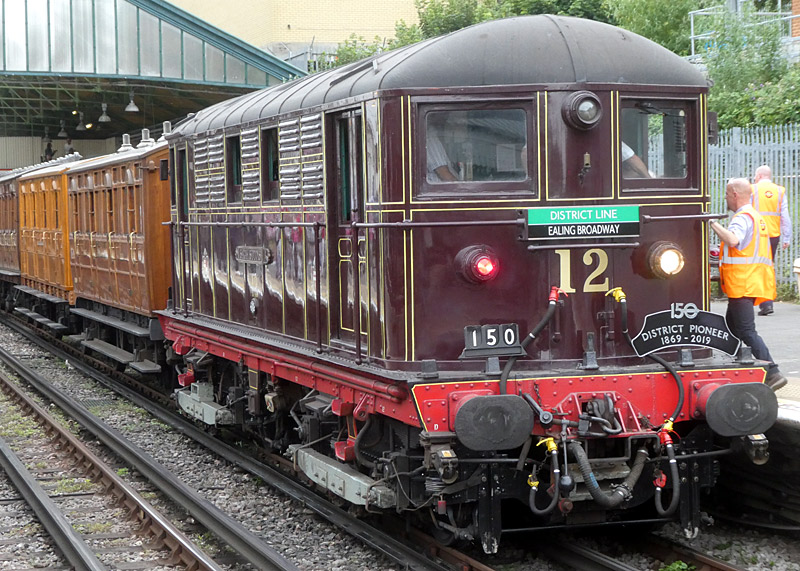

Metropolitan Railway Electric Locomotive Sarah Siddons.
Originally the carriages which were bought from British Rail were painted maroon
and used together, forming trains that were five or six carriages long.

Here former Metropolitan Railway electric locomotive Sarah Siddons is at the back of a year 2000 Steam On The Met train which includes some former British Rail Mk2 passenger carriages plus what in those days was simply known as a former British Railways Class 438 4TC set.

The location is Chalfont & Latimer station. The train with Sarah at its rear is travelling north towards Amersham station.
In the distance two southbound trains are approaching - these being another Steam On The Met train on the adjacent track
(coming from Amersham, with the other 4TC set plus other carriages)
and in the distance (far right), a Cravens 1960 tube stock train is on the bi-directional single track Chesham branch line.

Whilst the Class 438 LTM Heritage train has sometimes been lent to living museums its primary use is on leisure-themed special events on suburban parts of the London Underground system, which is very much a working railway (ie: one that carries fare paying passengers) during which time it travels at something nearer to normal speed rather than the very slow 25 mph (40 km/h) speed limit which most heritage railways must observe.

As the train only has a few compartments so only a fortunate few passengers are able to sample this style of seating. Everyone else must travel in the open carriages. Nevertheless, even for these passengers the ride experience is still far better than many present-day trains!

As an aside, these photographs also demonstrate what was a common feature of varnished teak carriages, this being that there were often variations in shade (hue, colour depth) between the wooden panels which formed the carriage sides. This was because they come from a natural product of different ages.

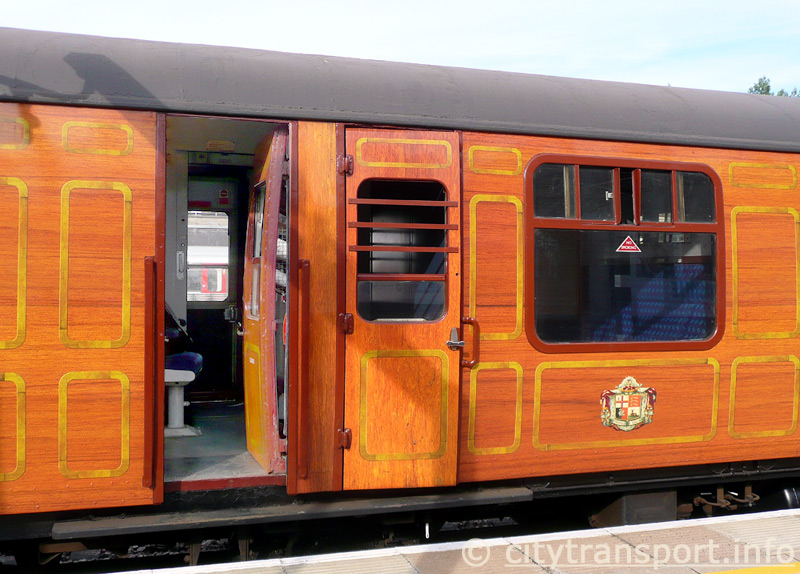

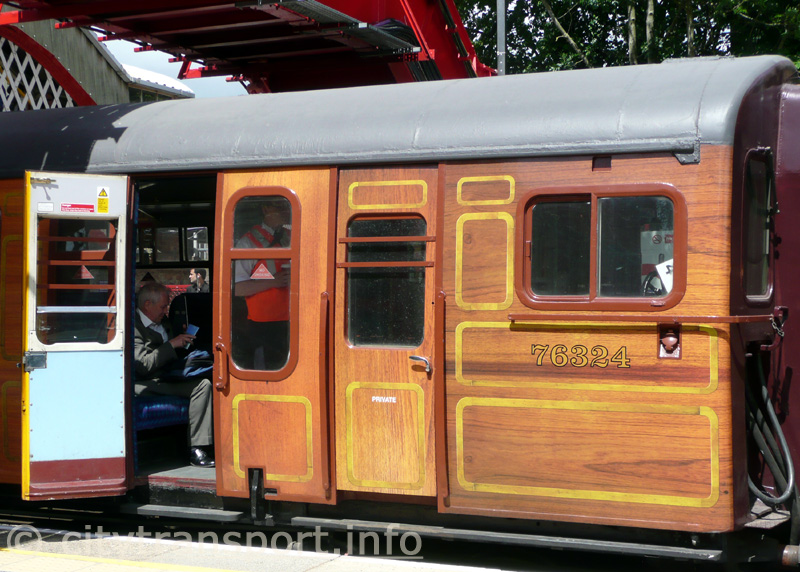

open door Metropolitan Heritage Train
The side corridor plus some of the compartments can be seen through the window and open doorway.

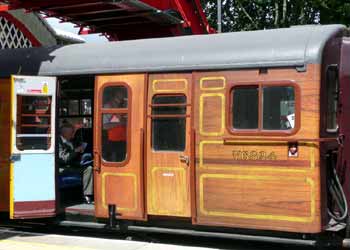

side view Metropolitan Heritage Train.
Both driving trailer second open (DTSO) carriages have a driver's cab at one end, this is carriage No. 76324.

guard door Metropolitan Heritage Train.
The trailer brake second corridor (TBSK) includes second class side-corridor compartments & a guard's area with adjacent luggage space.
This image also shows that in its guise as the Metropolitan Heritage Train this train carried the Metropolitan Railway coat of arms.

Metropolitan Heritage Train compartment.

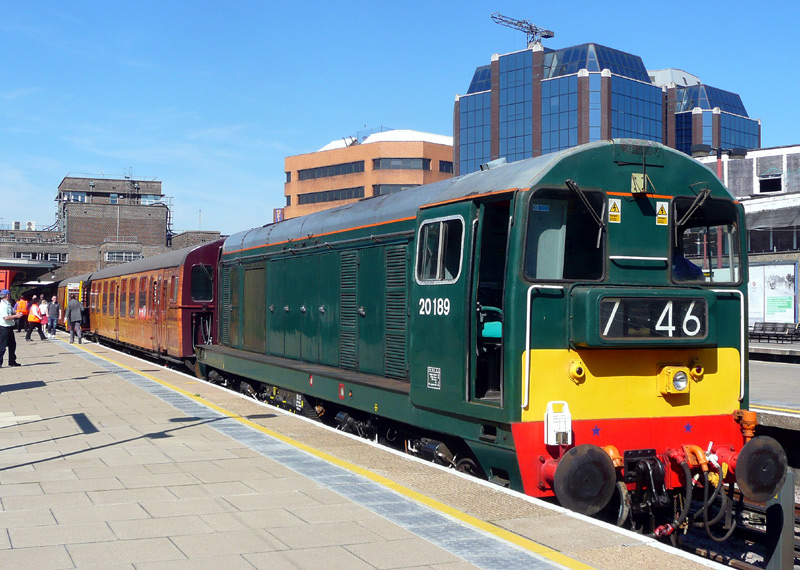

Awaiting the correct departure time from platform 2 at Harrow-On-The-Hill station
with green liveried Class 20 diesel locomotive 20 189 at the London end of the train.
This platform is normally only used by southbound trains operated by Chiltern Railways which are travelling to London Marylebone station.

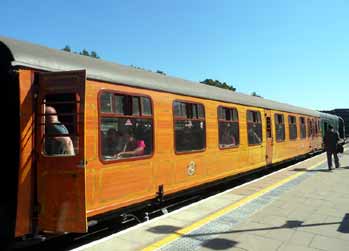

passenger boards train
A passenger has just boarded one of the DTSO carriages.
Photographs with file names that begin ‘P1260’ date from summer 2012.

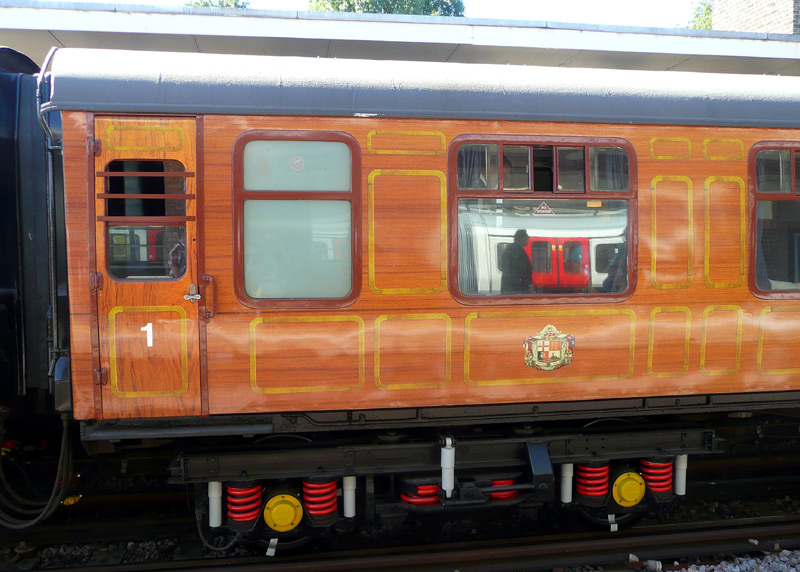

side view train frosted toilet window.
A door which is next to the first class compartments and transcluscent opaque white window which is for the toilet compartment - this allows light to enter whilst still respecting the privacy of the person using the facilities. Unfortunately on this train the toilets are usually locked shut.

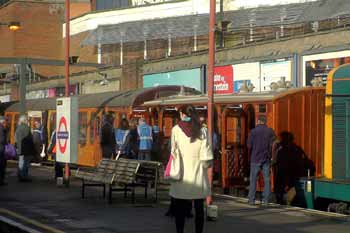

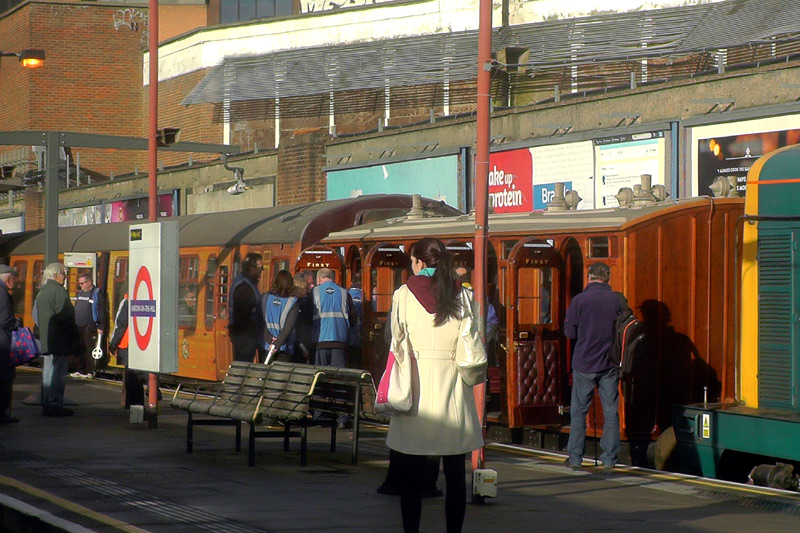

steam on the met Harrow On the Hill Metropolitan Jubilee carriage
Passengers boarding the (then) Metropolitan Heritage train and Jubilee carriage No.353 at Harrow-On-The-Hill prior to the first of several leisure-themed return journeys to Uxbridge station in December 2014. Also seen is the nose of Class 20 142 diesel locomotive.
This was filmed through the glass window of an S Stock train.

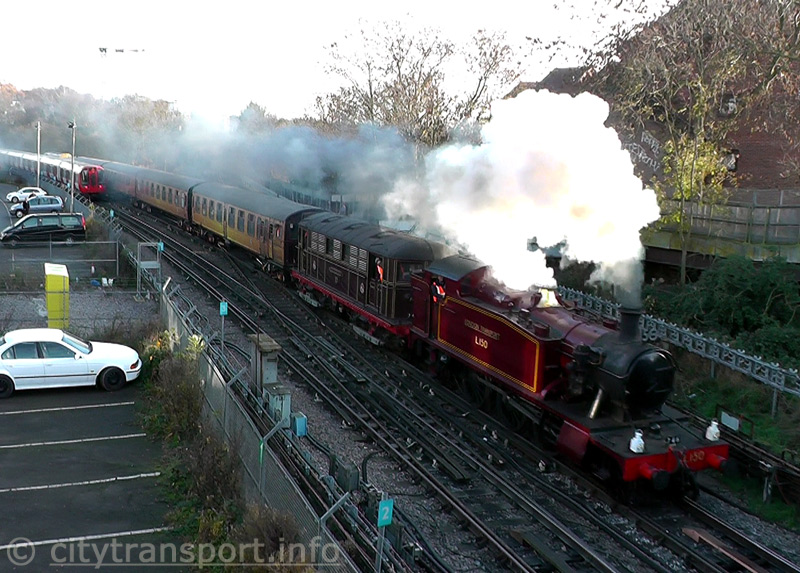

LU150 steam locomotive at Rayners Lane junction
The special train steams through Rayners Lane Junction.
Jubilee carriage No.353 and the diesel locomotive are out of sight behind the S stock train which is travelling towards Harrow-on-The-Hill.

20 142 diesel locomotive pass tube train
After having been stopped at a red signal the special train leaves Hillingdon on its way to Uxbridge.
Jubilee carriage No.353 and Class 20 142 diesel locomotive are closest to the camera, also seen is a Piccadilly Line 1973 Tube Stock train.

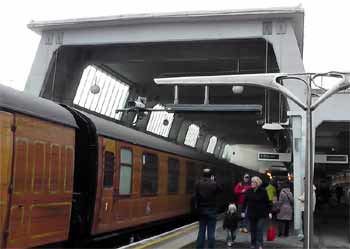

Metropolitan Heritage Train Uxbridge station

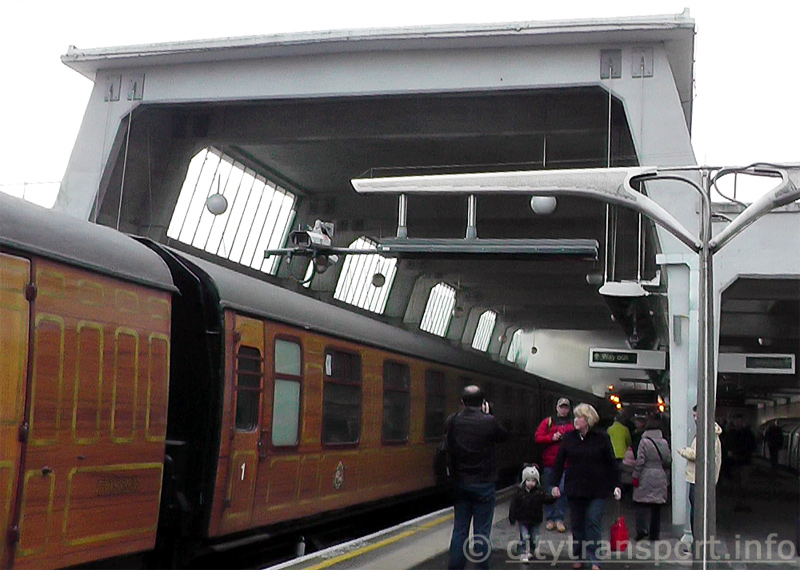

The special train pauses to reverse direction of travel at the 1938 London Passenger Transport Board (LPTB)
Concrete Cathedral terminus station at Uxbridge. On the far right can just about be seen a Piccadilly Line 1973 tube stock train.
To prevent delaying ordinary service trains the LU150 train only stopped here for a very brief few moments.

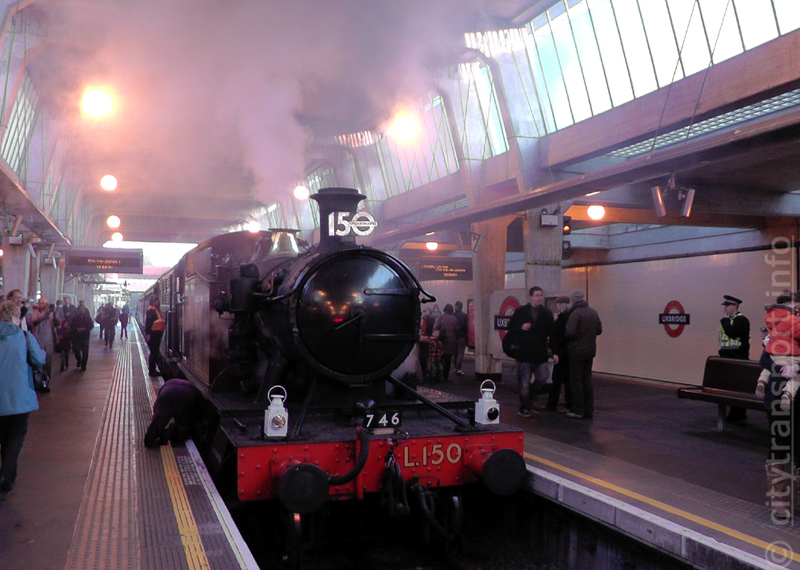

LU150 steam locomotive at Uxbridge station
The special train halted at Uxbridge for just about long enough to capture ths view showing the locomotive deep inside the trainshed.

In 2017 this train was repainted into London Transport livery. In addition, one of the former British Rail Class 20 diesel locomotives that is often used with this train was repainted to match. Neither of these had actually carried these liveries in the past, but the general public are unlikely to care that they are more pastiche than accurately depicting real history. A completely different way of looking at things suggests that the new liveries are actually helping create a new future history of trains that survived long enough to have second lives!

London Transport Museum Heritage Train

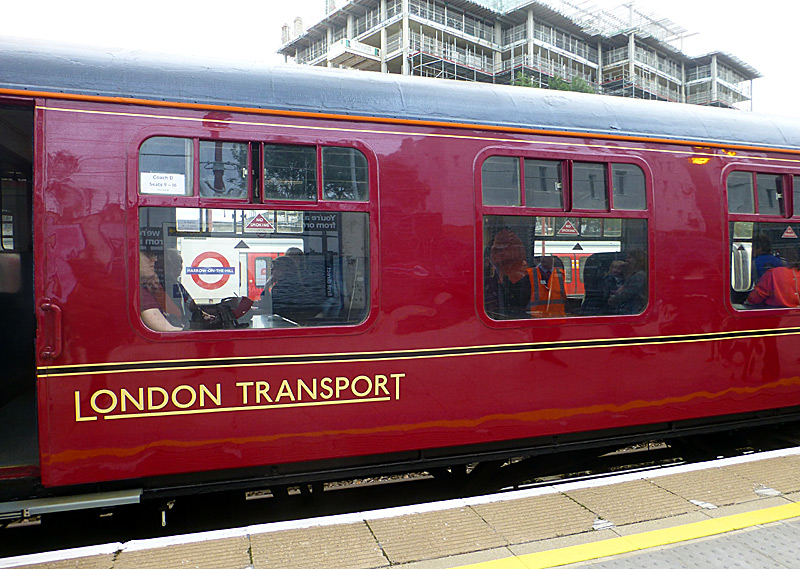

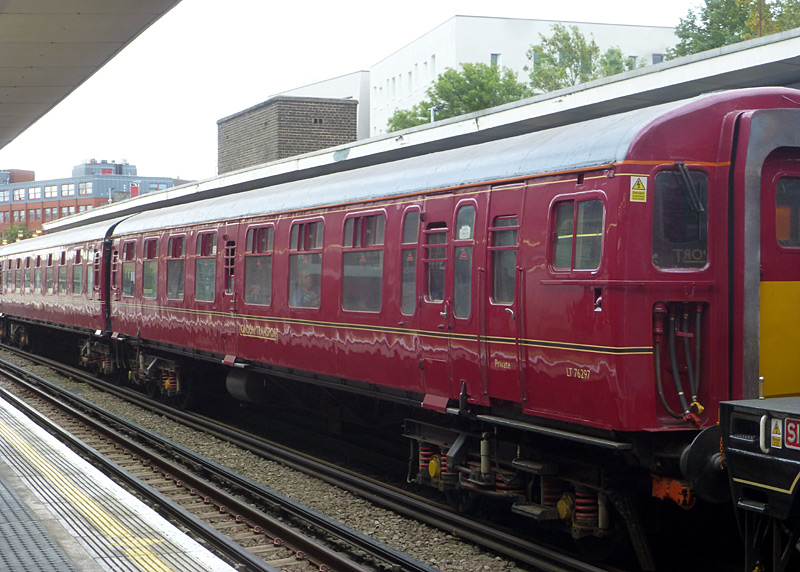

The London Transport Museum Heritage train at platform 2, Harrow On The Hill station.

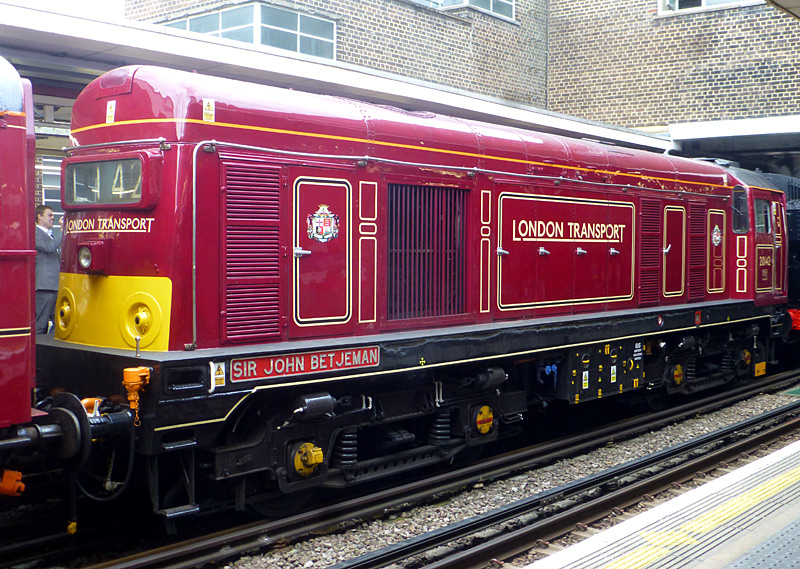

class 20 142 Sir John Betjeman diesel engine
Class 20 diesel locomotive 20 142 has been repainted into a matching livery and is named ‘Sir John Betjeman’ .

looking through the LTM Heritage Train
Looking sideways through a part of the train where the seats are
grouped around tables and accurately aligned to the windows.

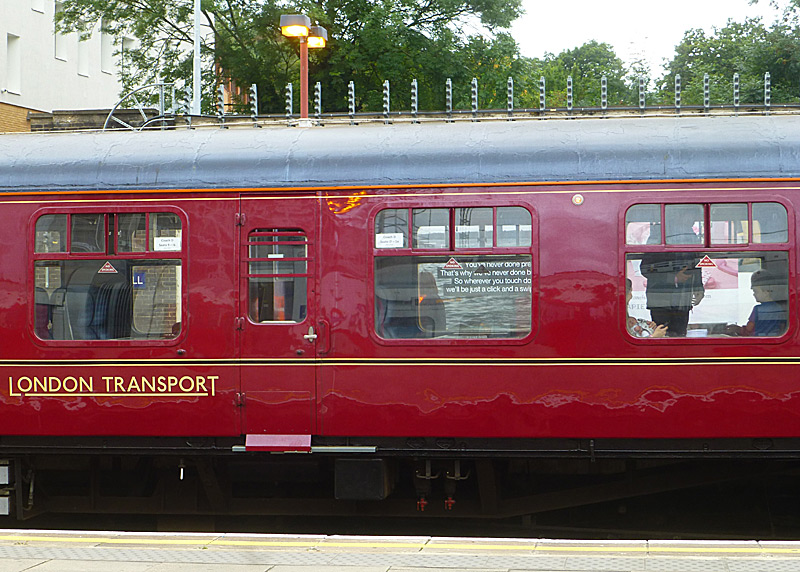

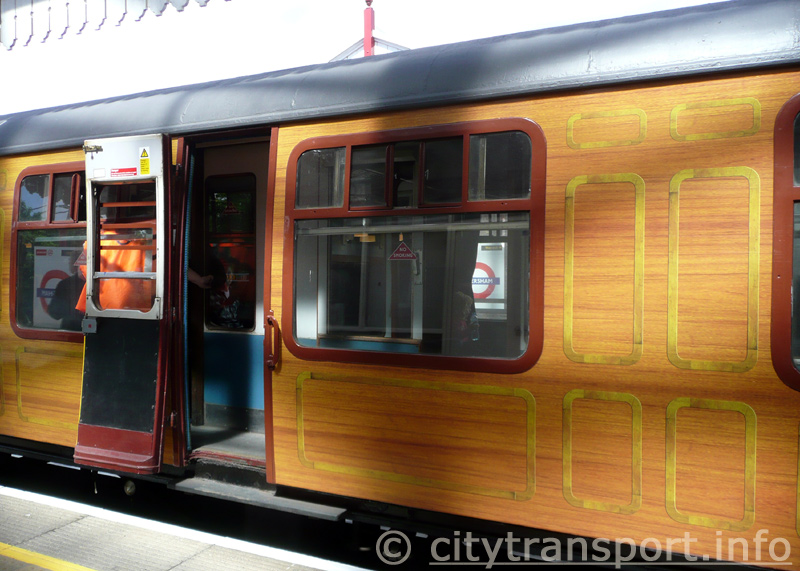

LTM Heritage Train at Harrow In The Hill
This side view from platform 3, Harrow On The Hill station, also shows one of the new ‘door open‘
lights that would have been fitted to the train as part of the new central door locking system.

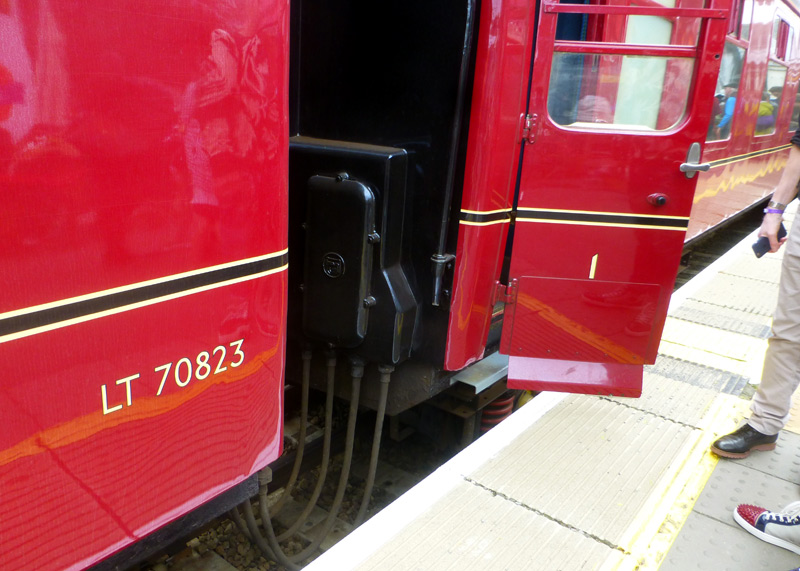

LTM Heritage Train door
It is believed that the changes to the lower portion of the passenger doors was in
connection with the fitting of an electronic central door locking system.

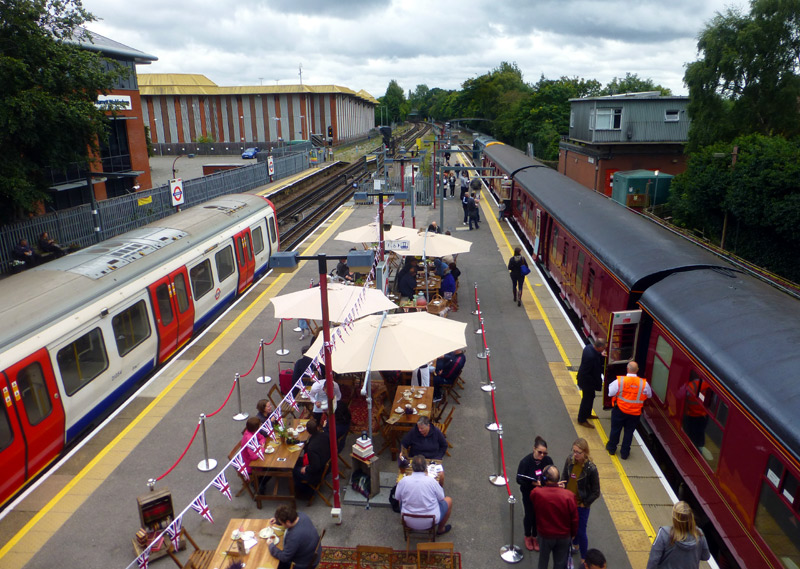

Summer Steam Popup Tea Shop Amersham station
The ‘summer steam’ 2017 Steam On The Met event included a pop-up tea room on the
island platform at Amersham station. Also seen here is a Metropolitan line S8 train.

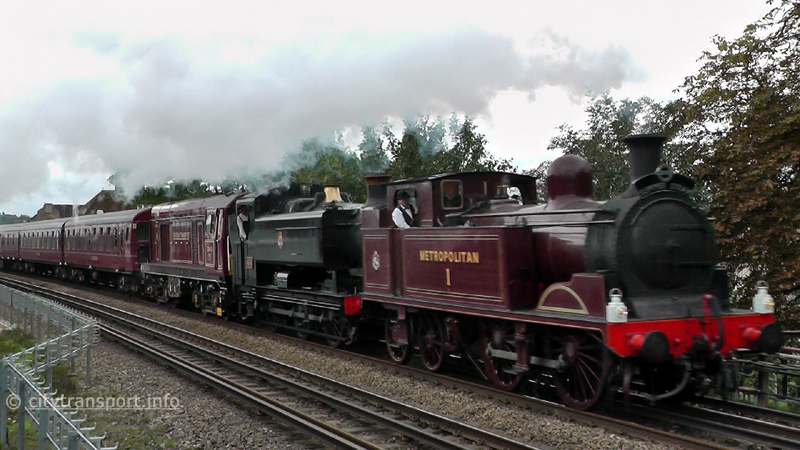

Summer Steam Train North Harrow station

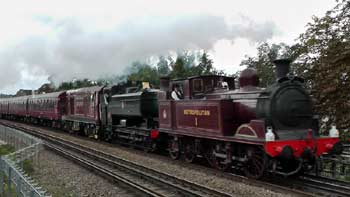

The ‘summer steam’ 2017 Steam On The Met train travelling north passes North Harrow station.

Because this train comprises former British Rail MK1 passenger carriages views inside it are seen on a page which is about British Rail MK1 rolling stock. The link to that page is below the links to the video clips.

film projector icon
Some videos showing Class 438 trains in action on the Metropolitan line have been placed on the ‘YouTube’ film / video website and can be watched (in new windows) by clicking the links below. The films are grouped according to event. .

1996 Steam On The Met Trains At Rickmansworth Station

Locomotives: BR Standard 75014, GWR 7325, Metropolitan Railway No.12 (Sarah Siddons), Class 20 227. Also used on the day but not seen here was GWR pannier tank 9466. Every time a train arrived at Amersham station the steam locomotive was swapped out so that the arriving engine could be given more coal and water.

In 1996 London Transport had two Class 438 4TC sets, although one of them had temporarily been reduced to three coaches. Therefore this Steam On The Met event saw two steam trains in operation. Each train was five carriages in length with some former British Rail Mk2 passenger coaches running alongside the 4TC (3TC) sets. All the passenger coaches were painted in maroon livery. Each train had two locomotives - one steam and one which was either diesel or electric. Some trains had both locomotives at one end, others had one at each end.

Also seen are two Class 165 diesel trains in Network SouthEast livery and an A stock train in original unpainted 'livery'.


2013 Steam On The Met Train At Northwood

Locomotives: Hauling the train are GWR Pannier Tank 9466 in British Railways livery, Metropolitan Railway Electric locomotive No.12 Sarah Siddons and diesel locomotive class 20 189 in London Transport red livery.

The LU150 steam train passes Northwood station on Bank Holiday Monday 27th May 2013. First it is seen travelling southbound and then northbound. In addition to the Class 438 4TC London Underground Heritage Train this train also includes Metropolitan Railway Jubilee Carriage No.353.

Also seen are two S8 S Stock trains, one of which is in promotional LU150 livery.


London Underground 1863 - 2013 150th anniversary Steam Train Event in December 2013

On 8th December 2013 and as the last event of the LU150 1863 - 2013 celebrations, the London Transport Museum ran a steam train on the 1904 Uxbridge branch between Harrow-On-The-Hill and Uxbridge. In addition to the 4-TC set these journeys included Jubilee carriage No.353.

At some of the locations visited in these films the special train passes normal service trains formed of Metropolitan Line S Stock or Piccadilly Line 1973 Tube Stock.

Locomotives: This train was powered by former British Railways Class 20 142 diesel locomotive, Metropolitan Railway electric locomotive No.12 Sarah Siddons and steam locomotive GWR Prairie 4574 Class 2-6-2T No. 5521 which had been painted in London Transport red and numbered LU150. The latter was deputising for Metropolitan Railway steam locomotive No.1 which because of a fault could not be used.


Vintage Summer Steam - September 2017

Locomotives: This train was powered by no less than four locomotives at the same time! The steam locomotives were Met No.1 and GWR 9466. The diesel locomotives were former British Rail Class 20's - 20 142 (in blue livery) and 20 142 (in London Transport red livery).

For passengers the Class 438 4TC unit ran in its new guise as the red liveried London Transport Museum Heritage Train.

  • This train arriving at Harrow-on-The-Hill station and passing North Harrow station on the main line tracks. Also seen is a Chiltern Trains Class 168 diesel train plus some S8 S Stock trains
    https://www.youtube.com/watch?v=JQr98ICN4Hw
  • The train as seen at Amersham station plus some green liveried Routemaster buses operating a special service
    https://www.youtube.com/watch?v=xxx
    (the link will be added when the film has been made!)

Direct links to other related pages (with small images)...

Click letterbox letterbox if you wish to send me an email.

This page represents a branchline off the main website so after viewing it should be closed - however in case you arrived here courtesy of a search engine then this link will take you to the Albums pages index http://citytransport.info/Album.htm and this link http://citytransport.info will take to you the opening page of this website.


Google

Web citytransport.info


citytransportinfo is also here:


share this page with your friends!

This page last updated 19th October 2017.
E & OE.
© Copyright 2001-2017 Simon P Smiler and named image sources.
Privacy Policy.
